DA-820 Series Hardware Installation

2-12

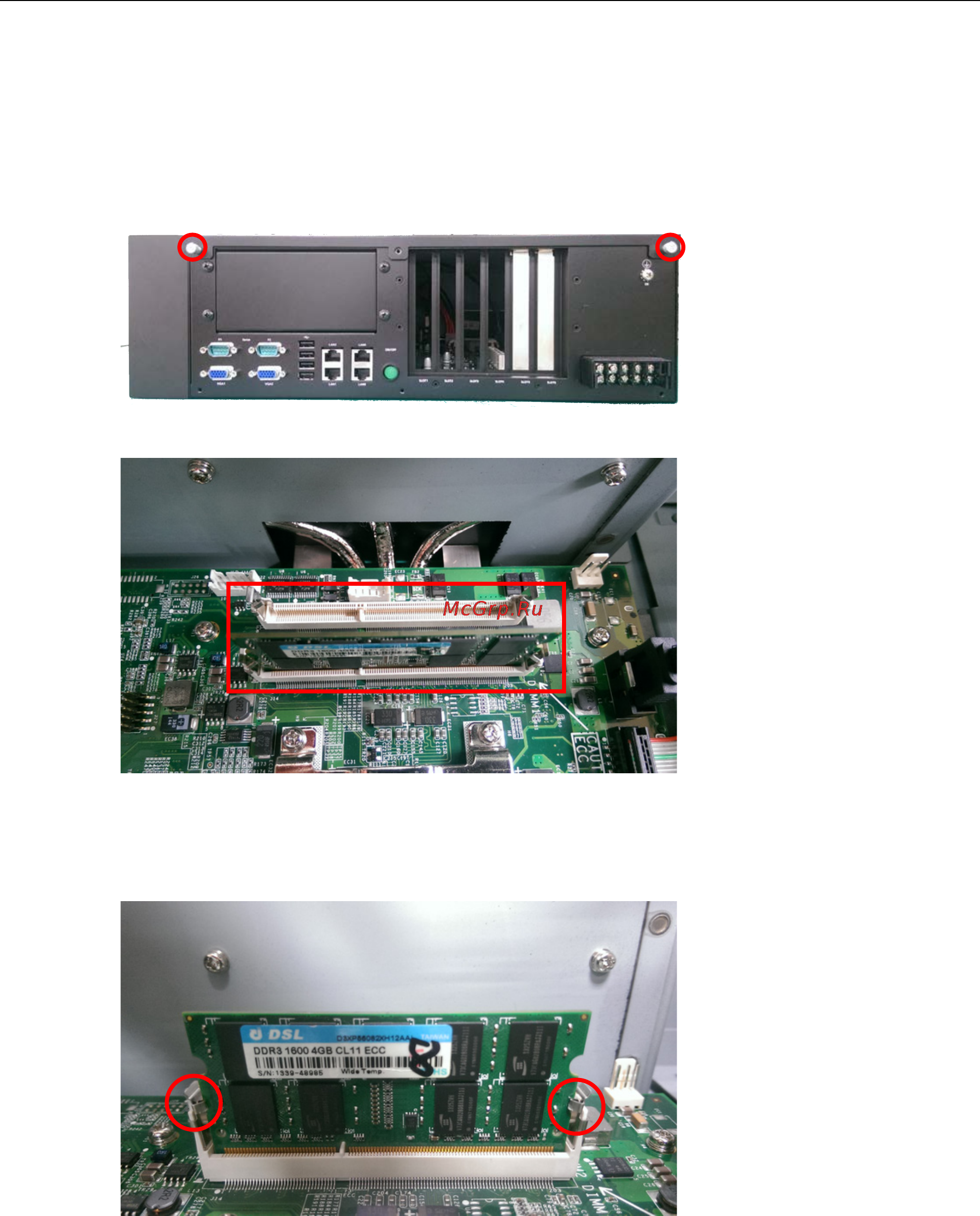

Upgrading the Memory Module

The DA-820 embedded computer supports 2 ECC registered DDR3 1333/1600 SODIMM modules, for up to 16

GB of memory (2 slots, each with 8 GB). To upgrade the SDRAM memory module, follow these instructions:

1. Disconnect the DA-820 from its power source.

2. Unfasten the screws on the back of the computer, and then take off the upper cover.

3. Find the location of the SDRAM memory socket.

4. If a memory module is already installed in the socket, push the two fasteners to free and then remove the

module. Insert the new memory module into the socket, making sure you insert the SDRAM in the correct

direction. Push down the memory module, making sure that the two fasteners snap in place and are holding

the module firmly.

5. When finished, replace the upper cover of the computer and fasten the screws.
