DA-820 Series Hardware Installation
2-14
Installing SATA Hard Disks
The DA-820 comes with four SATA slots that allow users to install 2.5” SATA HDD/SSD in the computer. Follow
these steps to install a SATA disk.

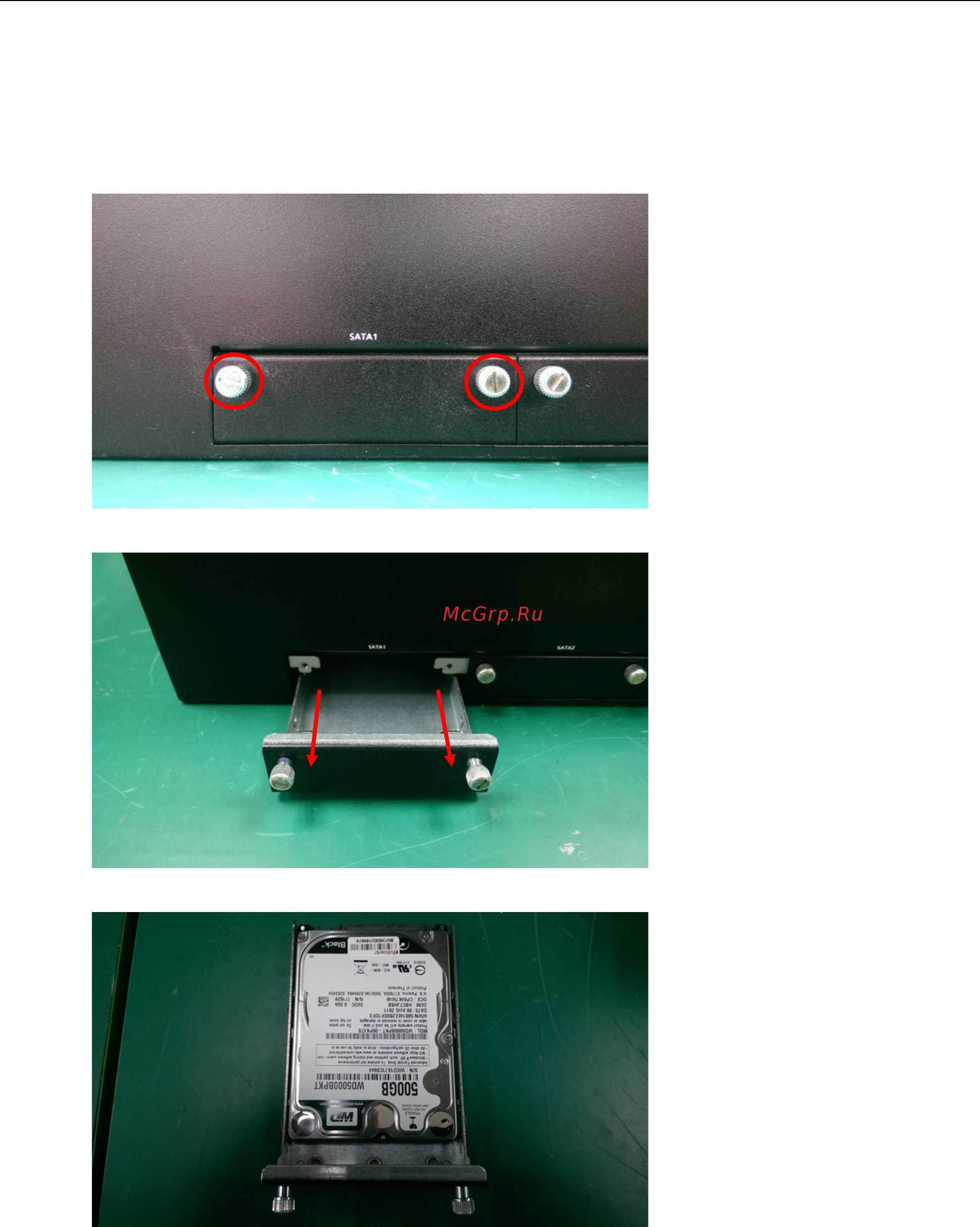

Step 1: Loosen screws from each of the four SATA slots (SATA1 is used to illustrate).
Step 2: Remove the SATA HDD Tray from the computer itself.
Step 3: Place the SSD/HDD in the tray as shown, and then flip the tray over to fasten the screws.
