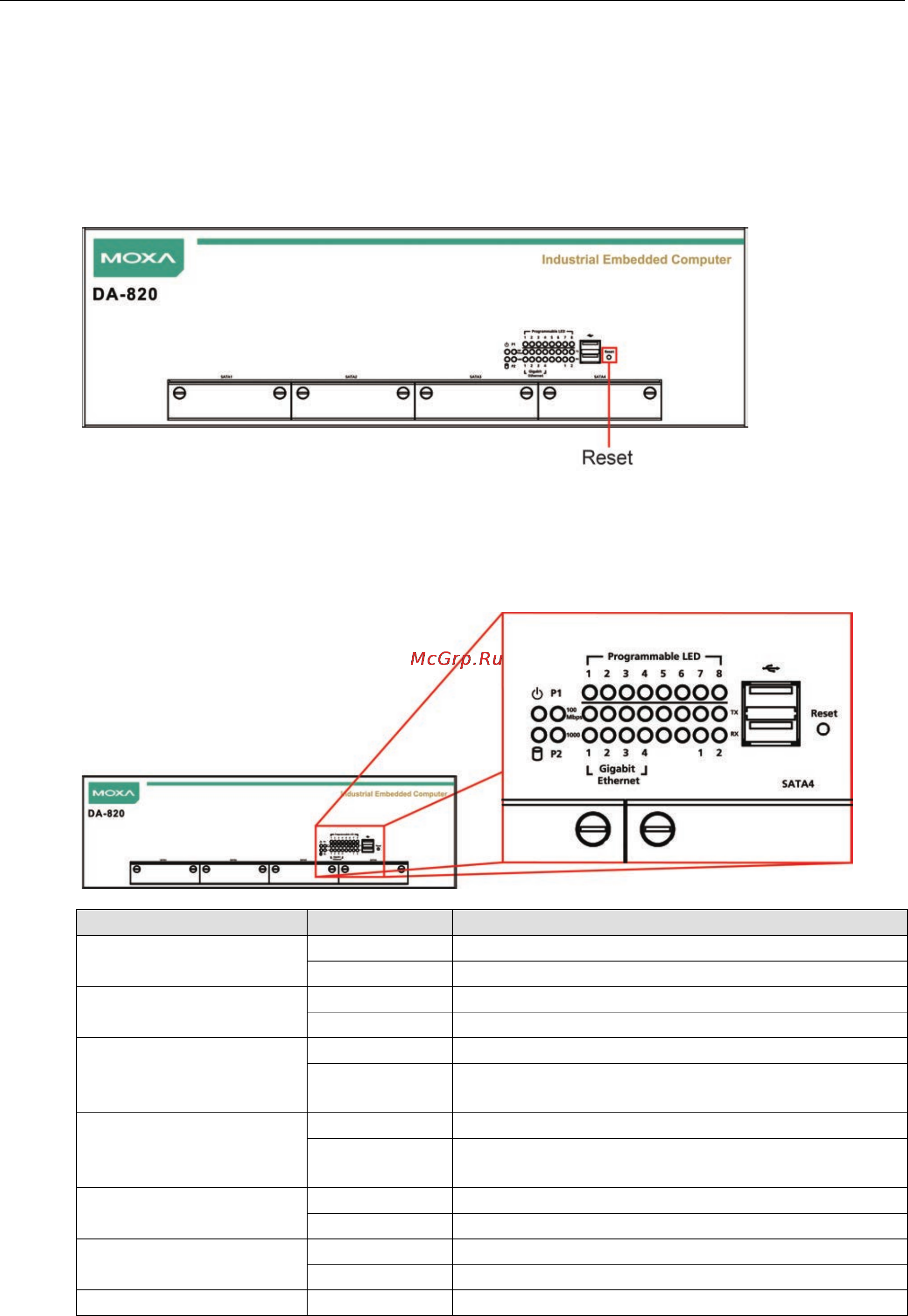

DA-820 Series Hardware Installation
2-9
Reset Button
Pressing the Reset button initiates a hardware warm reboot. The button plays the same role as a desktop PC’s
reset button. After pressing the reset button, the system will reboot automatically. During normal use, you
should NOT use the Reset Button. You should only use this button if the software is not working properly. To
protect the integrity of data being transmitted or processed, you should always reset the system from the
operating system with the software reboot function.
LED
There are 28 LED indicators on the front panel. Information about each LED is given in the following table.
LED Color Description
Power
Green Power is on
Off No power input or power error exists
Storage
Yellow/Blinking
Data is being written to or to read from the storage unit
Off Storage unit is idle
P1
(Non-functional for single
power supply)
Off The 1st power in on
Red Error in the 2nd power supply
P2
(Non-functional for single
power supply)
Off The 2nd power is on
Red Error in the 1st power supply
Gigabit LAN LEDs 1-4
Green 100 Mbps Ethernet mode
Orange 1000 Mbps (Gigabit) Ethernet mode
Serial Port 1/2
Green
Tx
Yellow Rx
Programmable 1-8 Green/Blinking 1-8 programming action is in process
