DA-820 Series Introduction
1-4

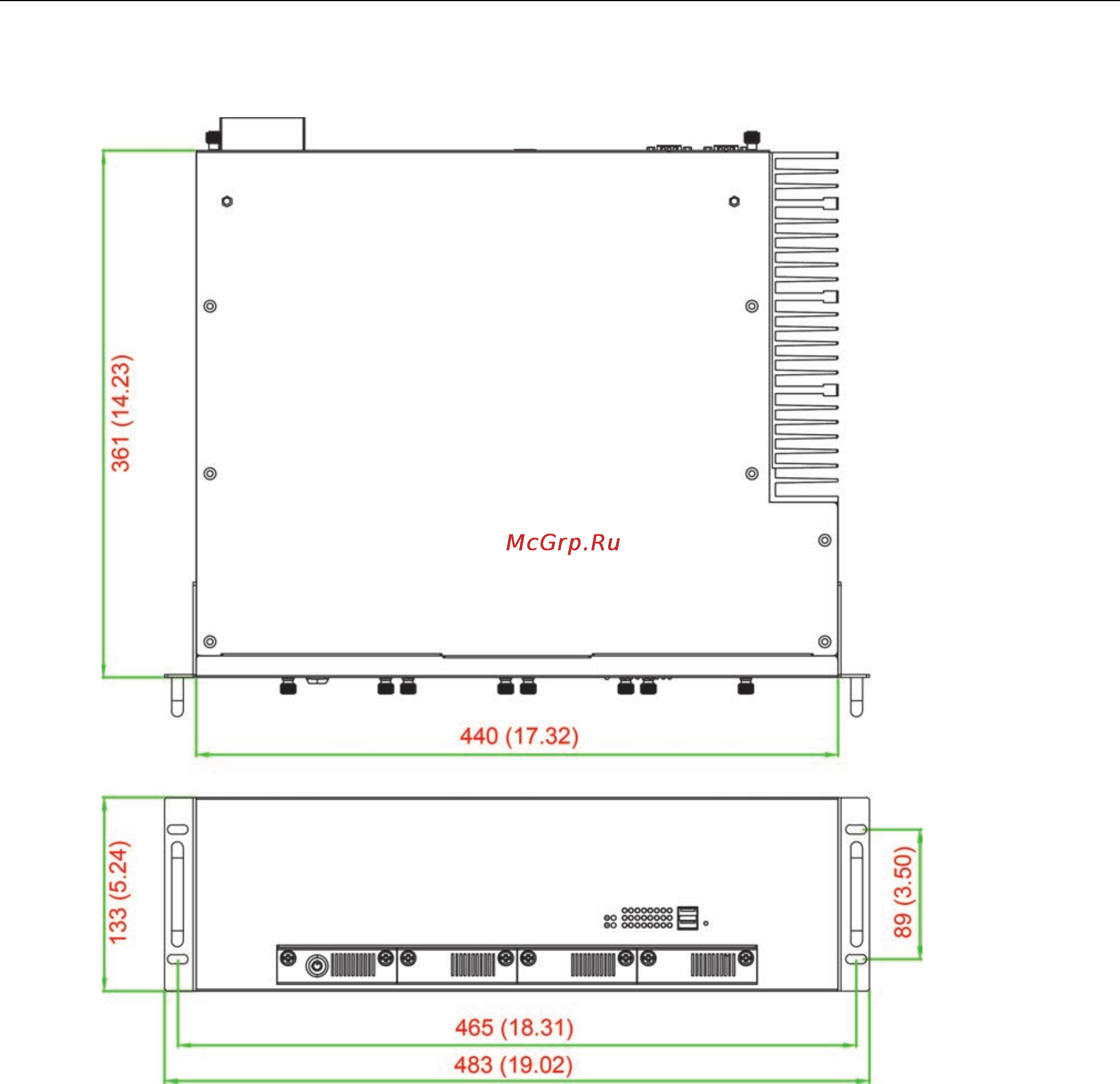

Dimensions
Unit = mm (inch)
Features
The DA-820 computer has the following features:
• Intel Core i7 dual/quad core processor with Intel QM77 Express chipset
• 2 x 204-pin SO-DIMM DDR3 sockets, supporting un-buffered ECC DDR3 memory at 1333 and 1600 MT/s,
16 GB max.
• 6 USB 2.0 ports for high speed peripherals
• 3 PCIe x1 slots and 2 PCI slots for expansion modules
• 1 PCIe x16 slot for an additional video card
• Highly reliable design, supporting dual power, RAID 0/1/5/10, and PRP/HSR technology (with PRP/HSR
expansion module)
• Cybersecurity function
• IEC 61850-3 (general requirements for electrical substation automation, EMC Level 4, C3, Bm)
• IEEE 1613 compliant (environmental and testing requirements for communications networking devices in
electric power substations)
• IEC 60255 compliant (measuring relays and protection equipment)
