DA-820 Series Hardware Installation

2-8

ATTENTION

1. Equipment must be installed according to the applicable country wiring codes.

2. Surge Ground MUST be disconnected from the Chassis Ground during HIPOT (dielectric strength) testing.

3. All line-to-

ground transient energy is shunted to the Surge Ground terminal. In cases where users require

the inputs to be isolated from the ground, remove the ground braid b

etween Surge and Chassis Ground.

Note that all line-to-ground transient protection circuitry will be disabled.

HIPOT (Dielectric Strength) Testing

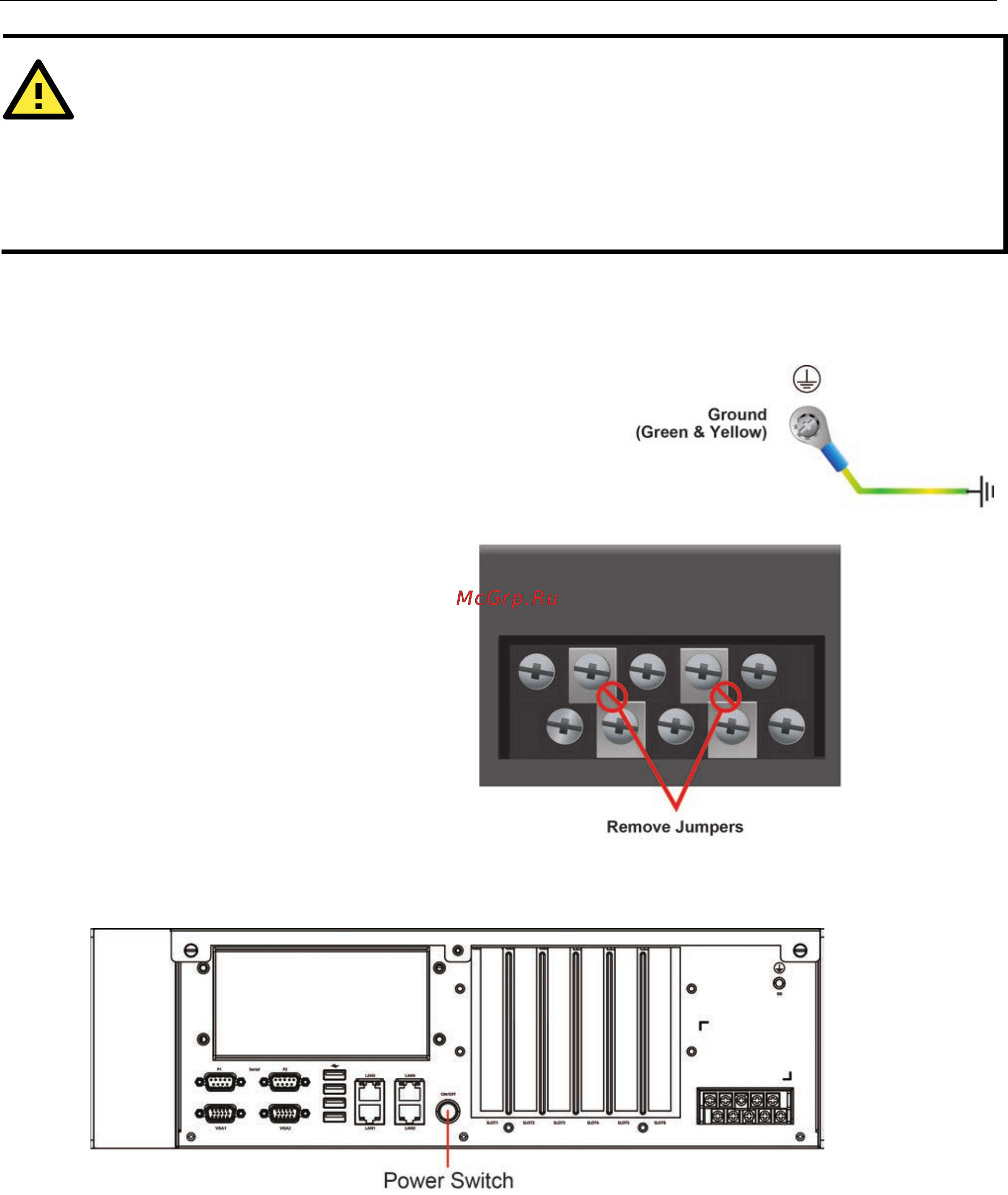

Before performing the HIPOT test, you MUST

remove

the jumpers and disconnect the

braided ground cable. Doing so can prevent

the transient/surge suppression circuitry

(

which is connected to Surge Ground)

from

being activated during the HIPOT test.

When finished, press the Power Switch button to start the system. It will take about 30 to 60 seconds for your

operating system to boot up.
