DA-820 Series BIOS Setup
3-7
NOTE
Smart Recovery is not supported under RAID mode.

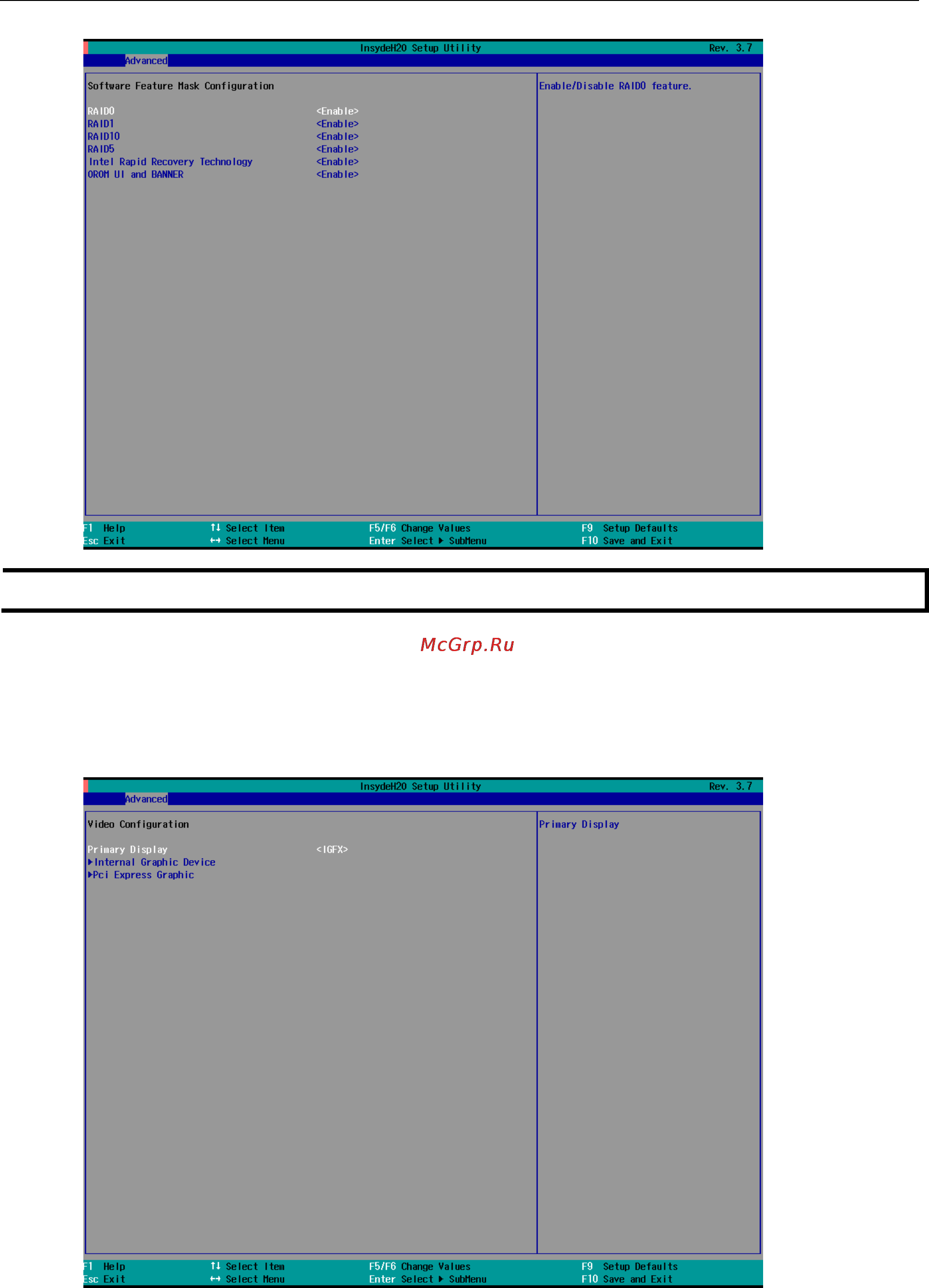

Video Configuration
This item allows you to configure the built-in Internal Graphics Device or external PCI Express Graphics card.
Options: IGFX (default), PEG
