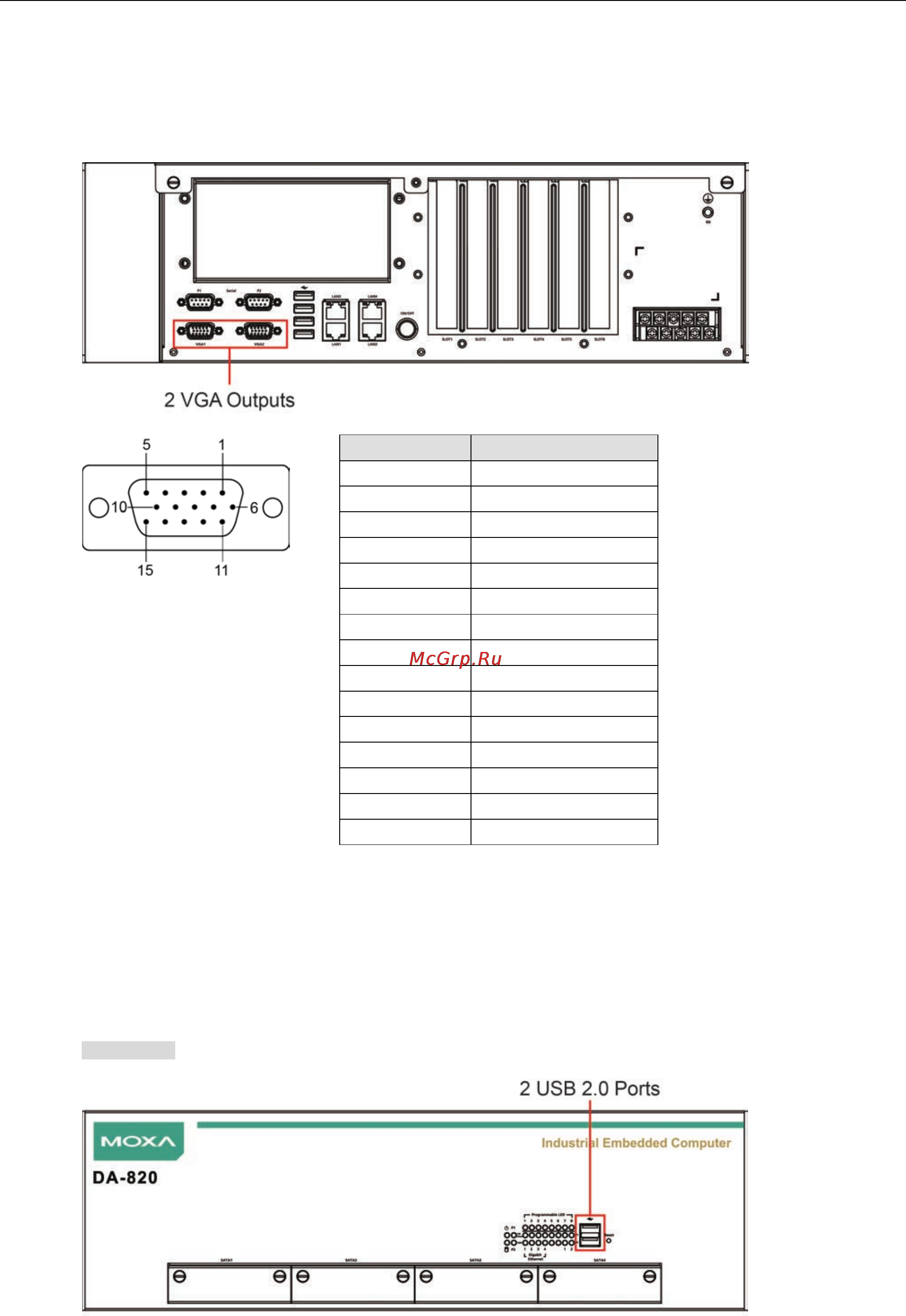

DA-820 Series Hardware Installation
2-10
Connecting to a Display
Your DA-820 embedded computer comes with two D-Sub 15-pin female connectors to connect to the VGA
monitor. Be sure to disconnect the power before you connect or disconnect the monitor cable.
Pin No. Signal Definition
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10 GND
11 NC
12 DDC Data
13 HSYNC
14 VSYNC
15
DDC Clock
Connecting USB Devices
The DA-820 embedded computer has six USB 2.0 ports, with two ports on the front panel and the other four on
the rear panel. All of the ports are UHCI, Rev 2.0 compliant and support Plug & Play and hot swapping. These
ports can be used to connect USB devices, such as a keyboard, mouse, USB flash disk, and USB CD-ROM. In
addition, both USB ports support system boot up, which can be activated by modifying the BIOS settings. See
Chapter 3: BIOS Setup for details.
