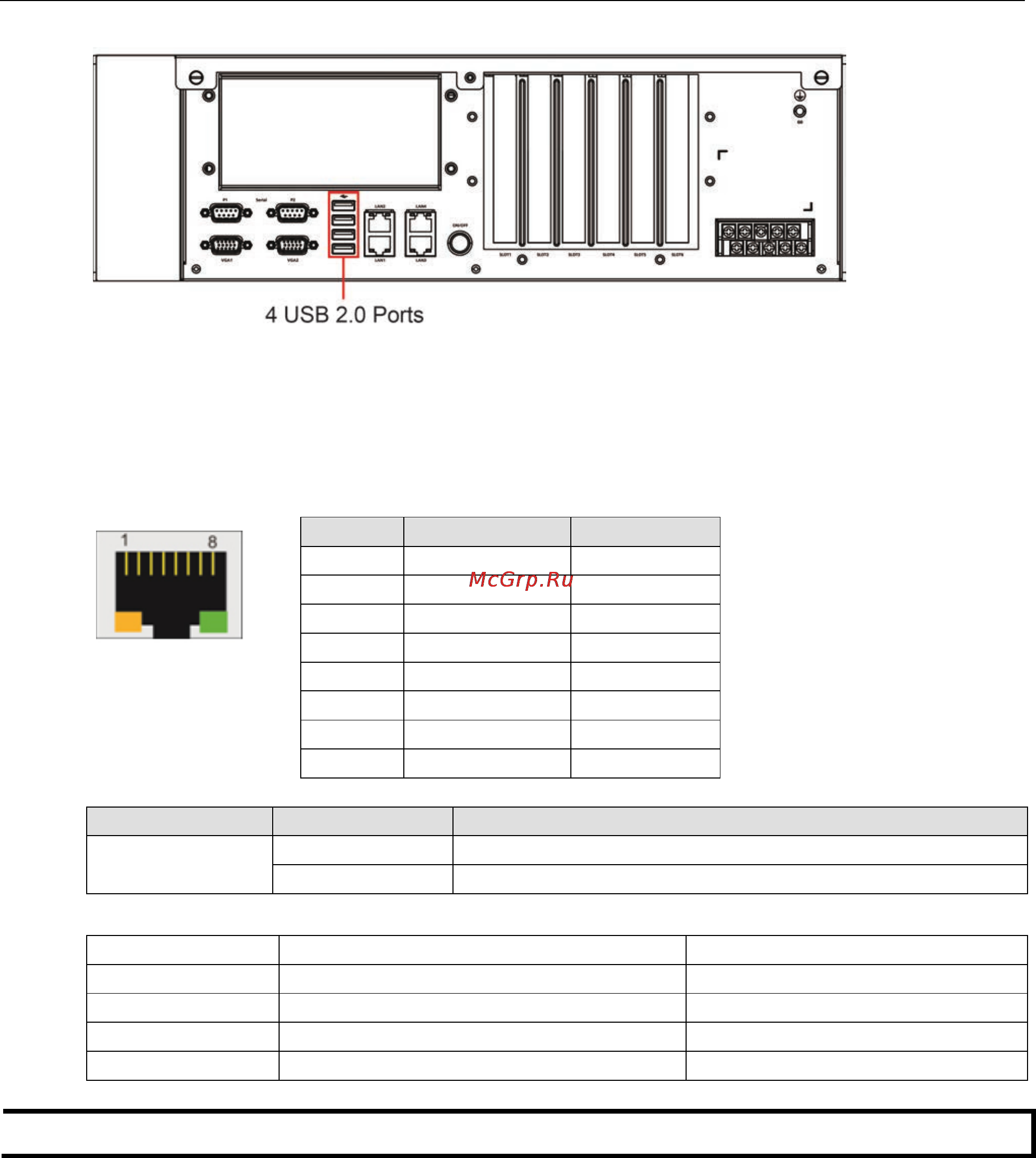

DA-820 Series Hardware Installation
2-11
Gigabit LAN Ports
The DA-820 Basic System has 4 Gigabit LAN ports. When a LAN cable is properly connected, the LEDs on the
RJ45 connectors will glow to indicate a proper connection.
Pin 10/100 Mbps 1000 Mbps
1 Tx+ TRD(0)+
2 Tx- TRD(0)-
3 Rx+ TRD(1)+
4 – TRD(2)+
5 – TRD(2)-
6 Rx- TRD(1)-
7 – TRD(3)+
8 – TRD(3)-
LED Color Description
Gigabit LAN LEDs
1-4
Green 100 Mbps Ethernet mode
Orange 1000 Mbps (Gigabit) Ethernet mode
The default IP addresses and netmasks of the Gigabit LAN ports are as follows:
Default IP Address Netmask
LAN 1
192.168.3.127
255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
LAN 3 192.168.5.127 255.255.255.0
LAN 4 192.168.6.127 255.255.255.0
NOTE
W7E models use DHCP by default to obtain IP addresses.
