DA-820 Series Hardware Installation
2-13

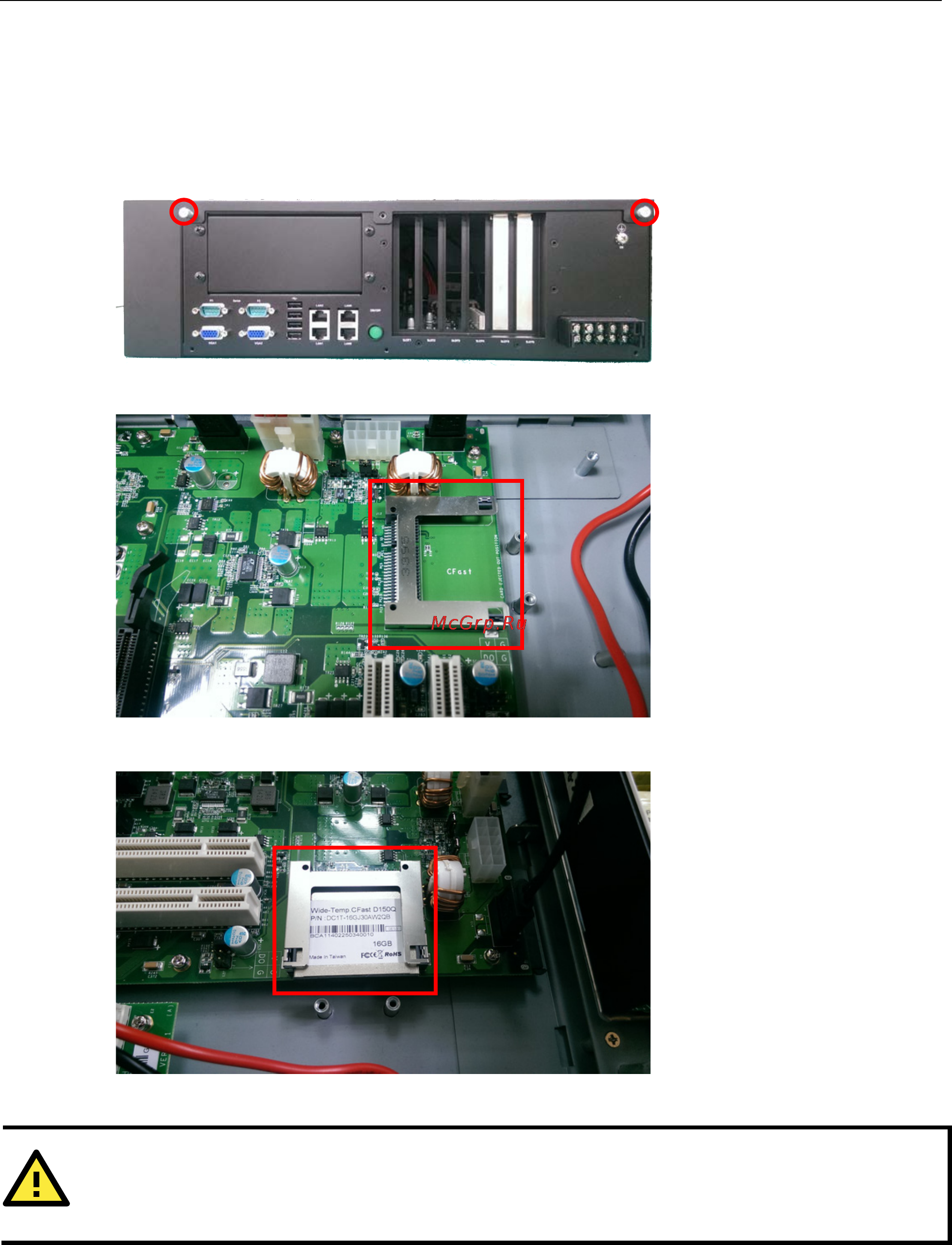

Installing a CFast Card
The DA-820 embedded computer comes with a CFast socket. To insert a CFast card, follow these instructions.
1. Disconnect the DA-820 from its power source.
2. Unfasten the screws on the back of the computer, and then take off the upper cover.
3. Find the location of the CFast socket.
4. Insert the CFast card into the socket.
5. When finished, restore the upper cover of the computer and fasten the screws.
ATTENTION
The DA
-820 rackmount computer does not support the CFast
hot swap and PnP (Plug and Play) functions. It is
necessary to remove power source first before inserting or removing the
CFast card.
