DA-683 Hardware Hardware Installation
2-3

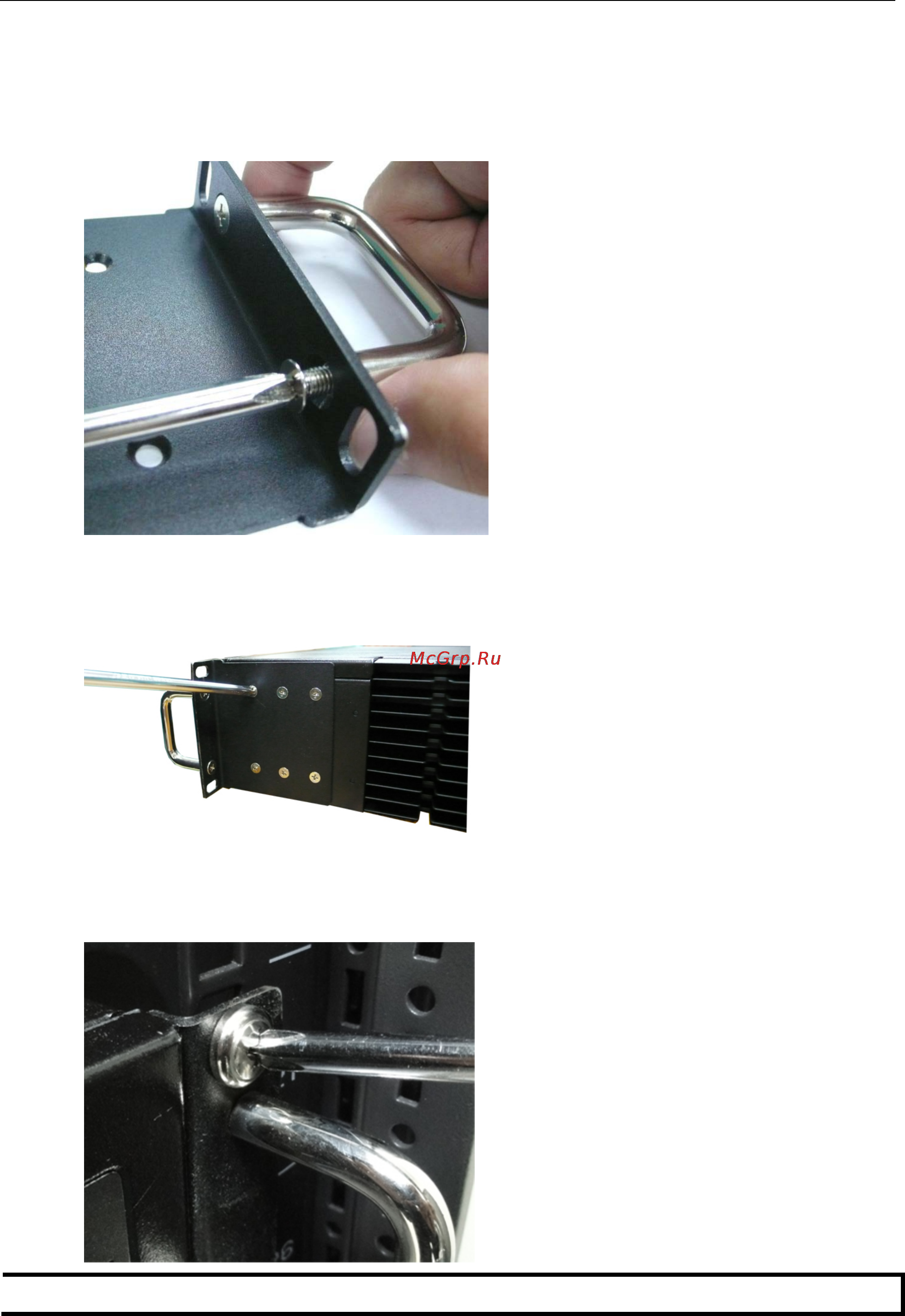

Step 2: Installing rackmount hanger to the support.
Use 2 FMSM5X10 screws to attach the rackmount hanger to the ear. Repeat this procedure for the additional
support and hanger.
Step 3: Installing the rackmount ears to the DA-683.
Use 6 screws to attach one rackmount ear to one side of the DA-683. Repeat this procedure for the ear on the
other side of the DA-683.
Step 4: Installing the DA-683 to a rack.
Gently slide the DA-683 onto the rack, and then use screws provided by the rack supplier to fix the rackmount
support to the rail.
NOTE
Use f
our screws to attach the DA-683 to the rack, two on the left side and two on the right side.
