Pin No. Signal Definition Pin No. Signal Definition

1 T.M.D.S. Data2- 16 Hot Plug Detect

2 T.M.D.S. Data2+ 17 T.M.D.S. Data0-

3 T.M.D.S. Data2/4 Shield 18 T.M.D.S. Data0+

4 N/C 19 T.M.D.S. Data0/5 Shield

5 N/C 20 N/C

6 DDC Clock 21 N/C

7 DDC Data 22 T.M.D.S. Clock Shield

8 Analog Vertical Sync 23 T.M.D.S. Clock+

9 T.M.D.S. Data1- 24 T.M.D.S. Clock-

10 T.M.D.S. Data1+ C1 Analog Red

11 T.M.D.S. Data1/3 Shield C2 Analog Green

12 N/C C3 Analog Blue

13 N/C C4 Analog Horizontal Sync

14 +5V Power C5 Analog Ground

(analog R, G, B return)

15 Ground (return for +5V,

HSync, and VSync)

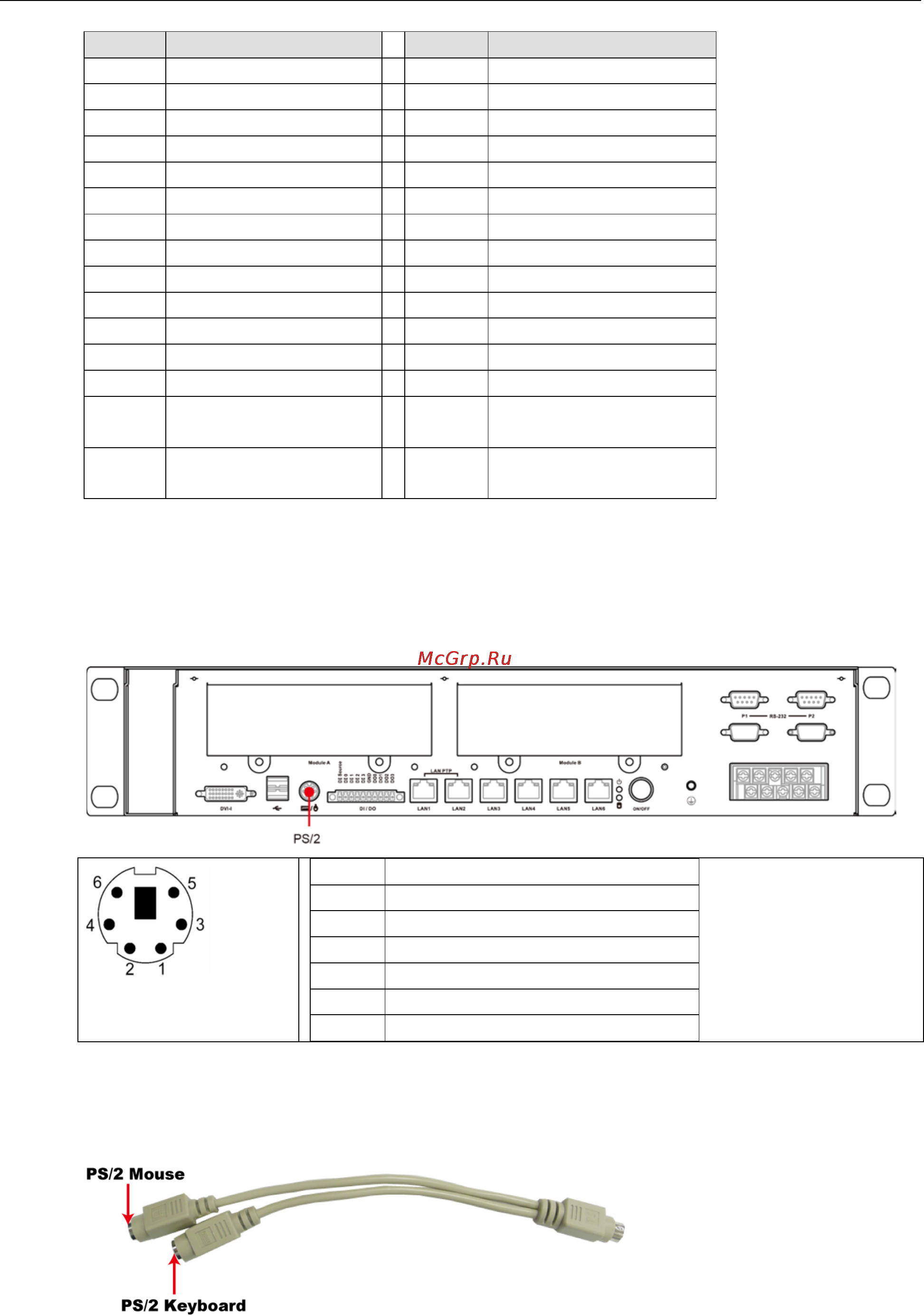

Connecting a PS/2 Keyboard and Mouse

Your DA-683 embedded computer comes with a PS/2 mini-DIN connector to connect to a PS/2 keyboard and

PS/2 mouse by using a Y-type cable. This 6-pin mini-DIN connector has the pin assignments shown below.

Pin No.

Signal Definition

1 PS/2 Keyboard Data

2 PS/2 Mouse Data

3 GND

4 VCC

5 PS/2 Keyboard Clock

6 PS/2 Mouse Clock

Use the Y-type cable to convert the mini-DIN connector into two 6-pin mini-DIN connectors to connect both a

PS/2 keyboard and PS/2 mouse at the same time. (The Y-type cable is not included in the accessory package.

It should be purchased separately. You may also use the USB ports to connect your USB-based keyboard and

mouse.)
