DA-683 Hardware Hardware Installation
2-5

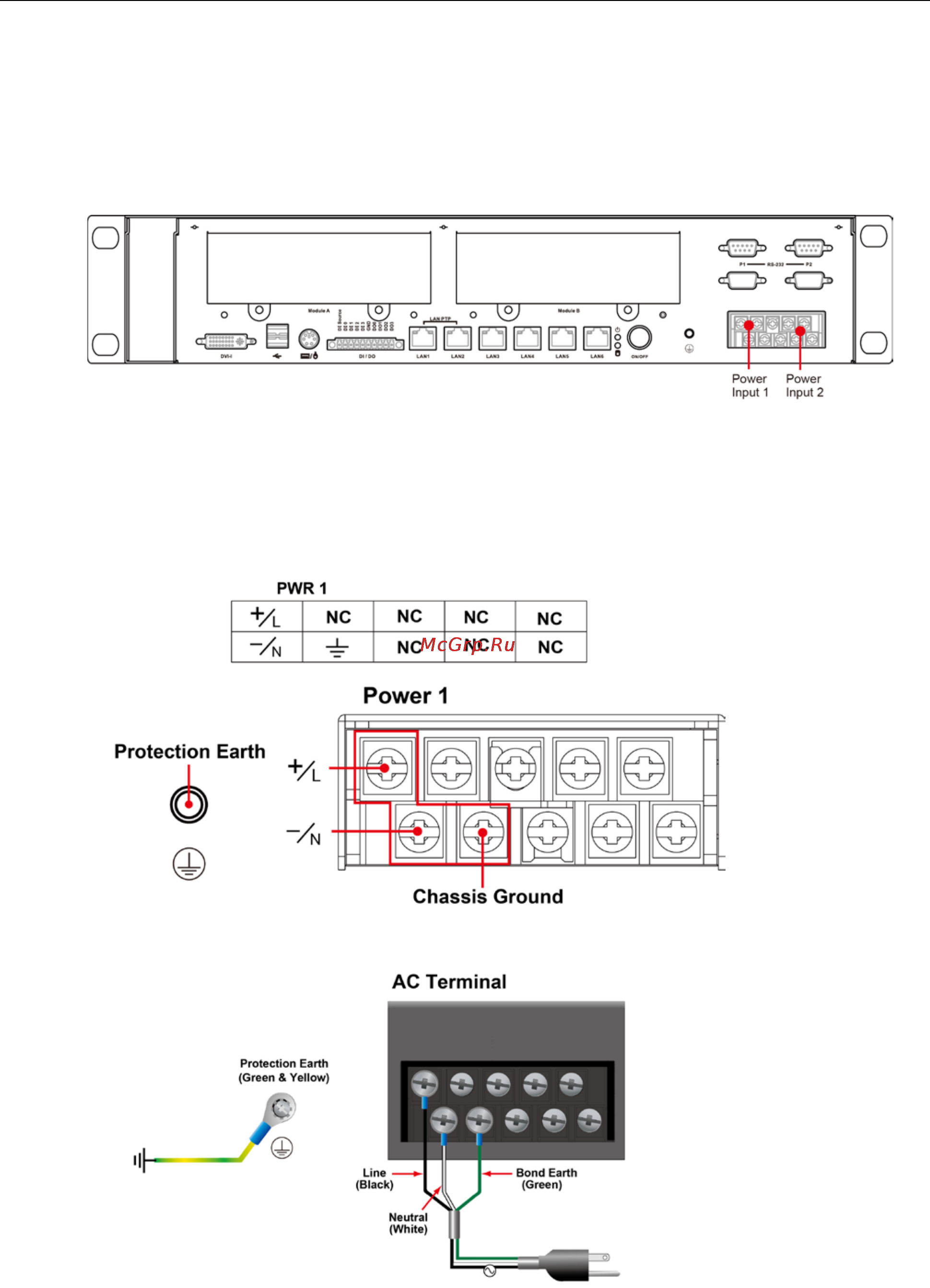

Connecting the Power
The DA-683 offers both single power and dual power inputs. Use a screwdriver to remove the screws. Connect
the power cord to the screws and then attach the screws to the unit. For single models (SP), use Power 1 only;
for dual power models (DPP-T), use both Power 1 and Power 2 for power input installation. Refer to the
following figure for detailed information.
Wiring the Power Inputs
SP Models
