DA-683 Hardware Introduction
1-4
Features
The DA-683 computer has the following features:
• IEC 61850-3 certified for power substation automation systems (DPP-T models only)
• Intel Dual Core Atom D510 1.66 GHz processor
• DDR2 SODIMM socket, supporting DDR2 667 up to 2 GB (max.)
• 6 10/100/1000 Mbps Ethernet ports
• 2 RS-232 serial ports
• 4 USB 2.0 ports for high speed peripherals
• 4 DIs, 4 DOs
• CompactFlash socket for storage expansion
• 2 SATA-300 connectors for hard disk drive expansion
• 2 PCI expansion slots for inserting expansion modules
• Dual power input models available
• Ready-to-run Embedded Linux, Windows Embedded Standard 2009 or Windows Embedded Standard 7
platform
• -40 to 70°C wide temperature models available
ATTENTION
Refer to the “Non
-standard Baudrates” section for instructions on how to calculate which baudrates are
supported.

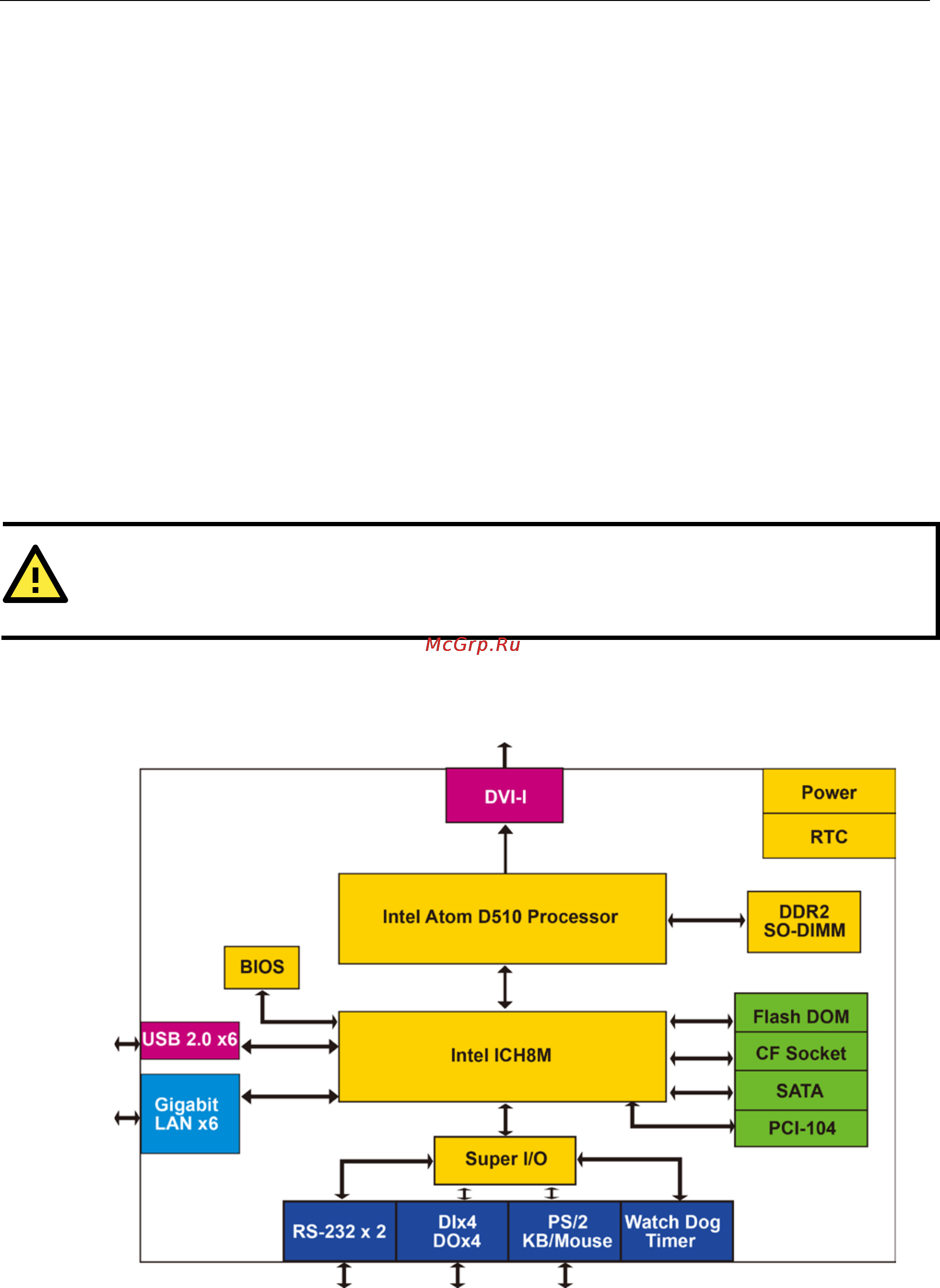

Hardware Block Diagram
