DA-683 Hardware Hardware Installation
2-13

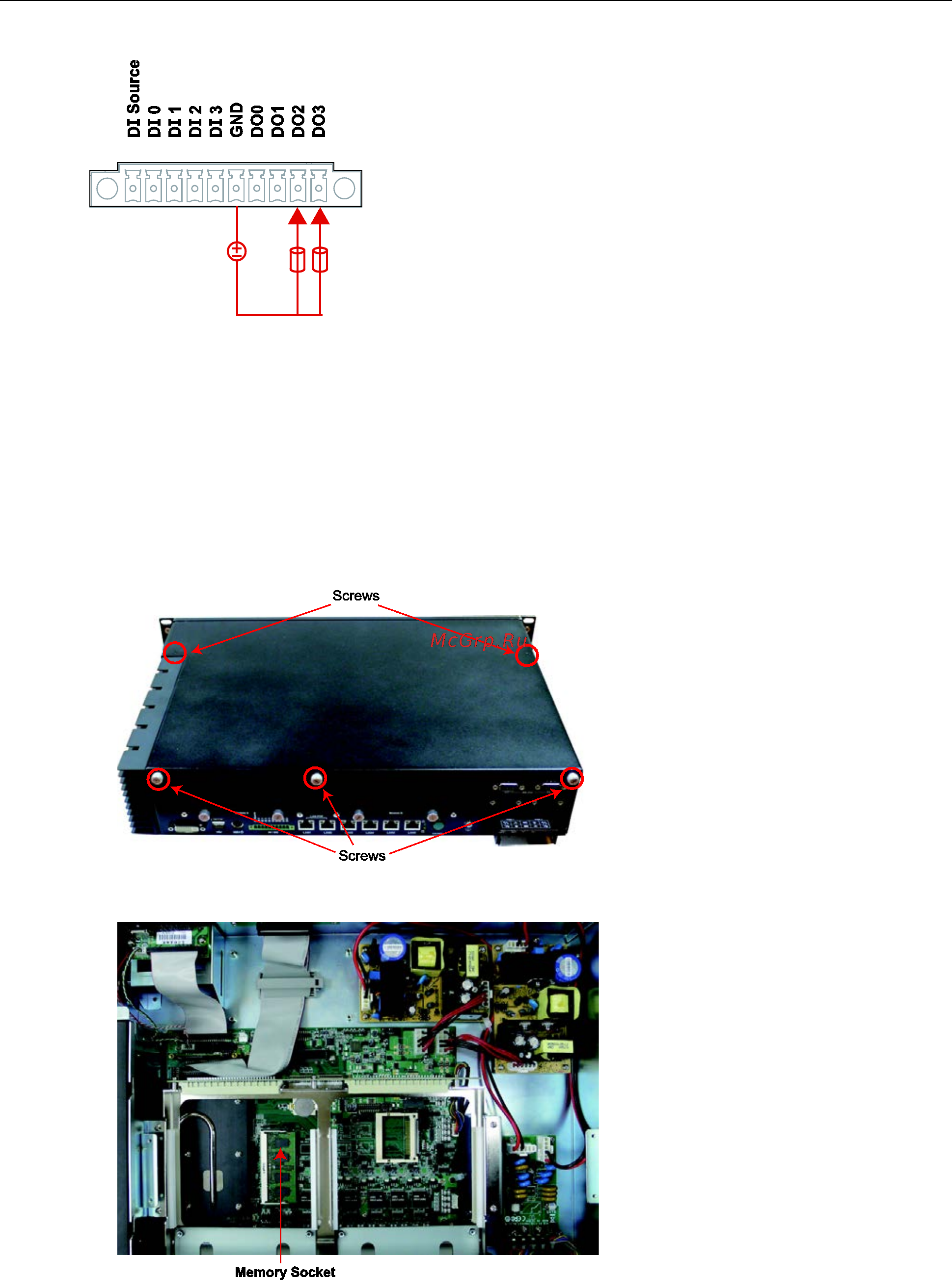

Digital Output Wiring
Upgrading the Memory Module
The DA-683 embedded computer supports one 200-pin DDR2 667 SODIMM module of up to 2 GB. One DDR2
SDRAM memory module is pre-installed. To upgrade the DDR2 SDRAM memory module, follow these
instructions:
1. Disconnect the DA-683 from the power source.
2. The DA-683’s memory module is located inside the DA-683. Use a screwdriver to remove the screws on the
top cover of the DA-683.
3. After removing the cover, you will see the DDR2 SDRAM module.
4. To upgrade the memory, you need to remove the original memory by pushing two clutches at both sides of
the module.
