DA-683 Hardware Hardware Installation

2-8

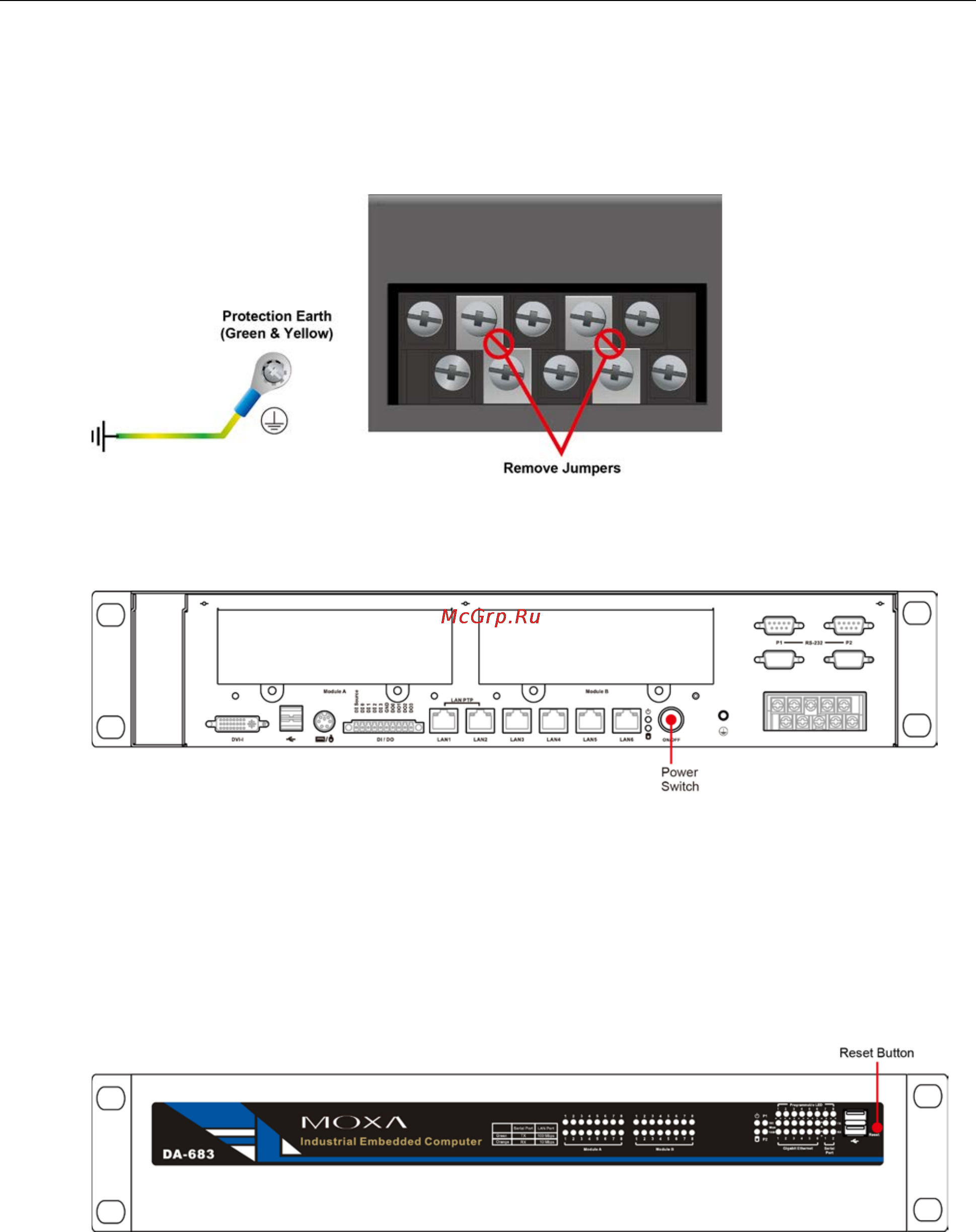

HIPOT (Dielectric Strength) Testing

Before performing the HIPOT test, you MUST have the jumpers removed and the braided ground cable

disconnected. Doing so can prevent the transient/surge suppression circuitry, which is connected to Surge

Ground from being activated during the HIPOT test.

When finished, press the Power Switch button to start the system. It will take about 30 to 60 seconds for your

operating system to boot up.

Reset Button

Pressing the Reset button initiates a hardware warm reboot. The button plays the same role as a desktop PC’s

reset button. After pressing the reset button, the system will reboot automatically. During normal use, you

should NOT use the Reset Button. You should only use this button if the software is not working properly. To

protect the integrity of data being transmitted or processed, you should always reset the system from the

operating system with the software reboot function.
