DA-683 Hardware BIOS Setup
3-6

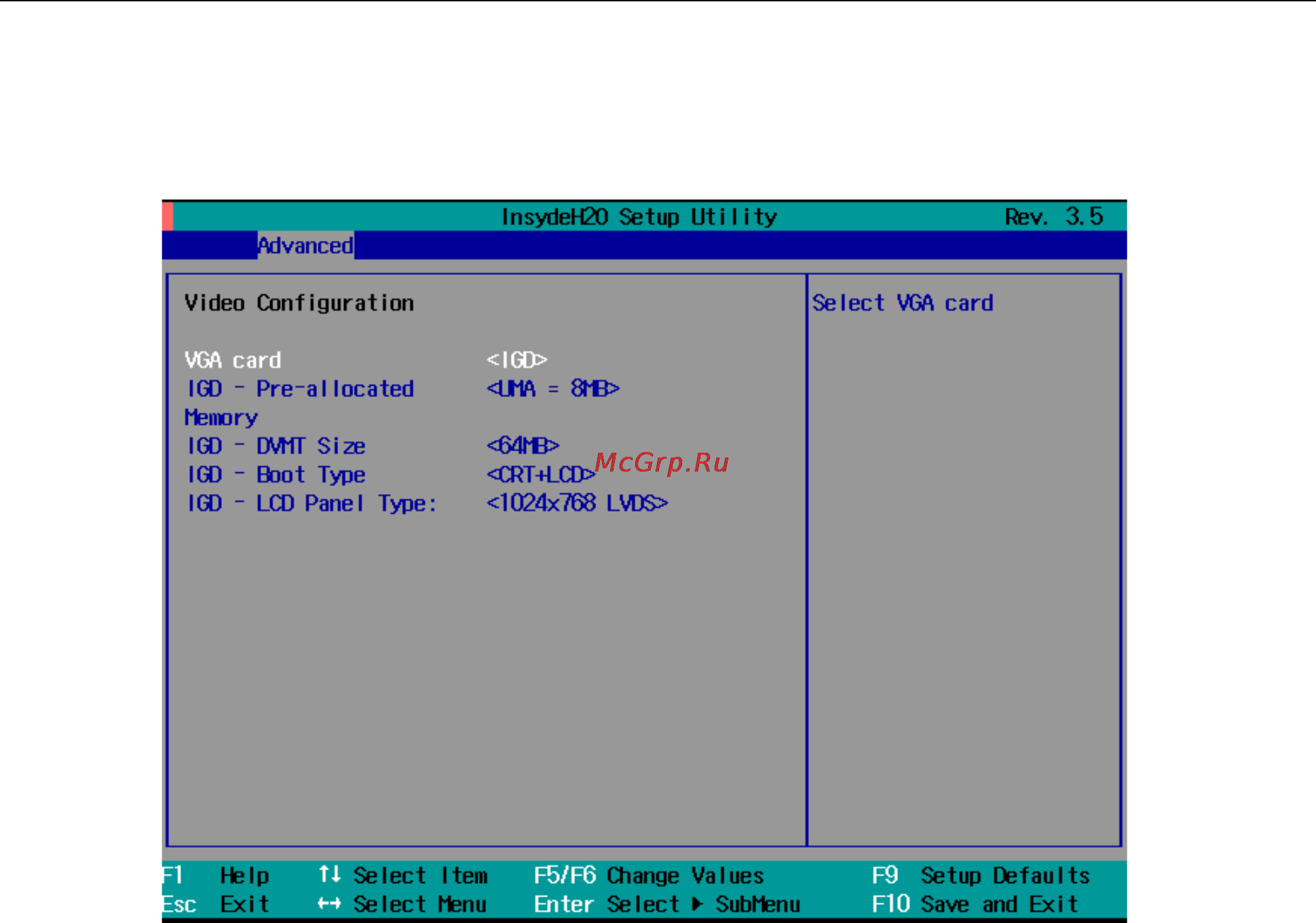

Video Configuration
This item allows you to configure the video settings.
VGA card
This item allows you to select the onboard VGA chipset or the external VGA card installed in the PCI slot.
Options: IGD (default), PCI
IGD – Pre-Allocated
This item allows you to configure the pre-allocated capacity for the graphic memory capacity.
Options: 8 MB (default), 1 MB
IGD – DVMT Size
This item allows you to configure the capacity of the DVMT 5.0 used by the internal graphics device.
Options: 64 MB (default) , 128 MB, 224 MB
IGD – Boot Type
This item allows you to select the video device that will be activated during POST.
Options: CRT+LCD (default), CRT, LCD
IGD – LCD Panel Type
This item allows you to select the LCD panel type and the resolution.
Options: 1024x768 LVDS (default), 800x600 LVDS
