Moxa DA-683-SP-LX [22/47] Connecting digital input output channels

DA-683 Hardware Hardware Installation

2-12

Pin No.

Gigabit Ethernet Signal

1 TRD (0)+

2 TRD (0)-

3 TRD (1)+

4 TRD (2)+

5 TRD (2)-

6 TRD (1)-

7 TRD (3)+

8 TRD (3)-

LED Color Description

Ethernet Port

1000 Mbps

Green 1000 Mbps of Ethernet Port is active

Off No activity

Ethernet Port

100 Mbps

Yellow 100 Mbps of Ethernet Port is active

Off 10 Mbps or no activity

The default IP addresses and netmasks of the Gigabit LAN ports are as follows:

Default IP Address Netmask

LAN 1 192.168.3.127 255.255.255.0

LAN 2 192.168.4.127 255.255.255.0

LAN 3 192.168.5.127 255.255.255.0

LAN 4 192.168.6.127 255.255.255.0

LAN 5 192.168.7.127 255.255.255.0

LAN 6 192.168.8.127 255.255.255.0

NOTE Note that the XPE and W7E models use DHCP.

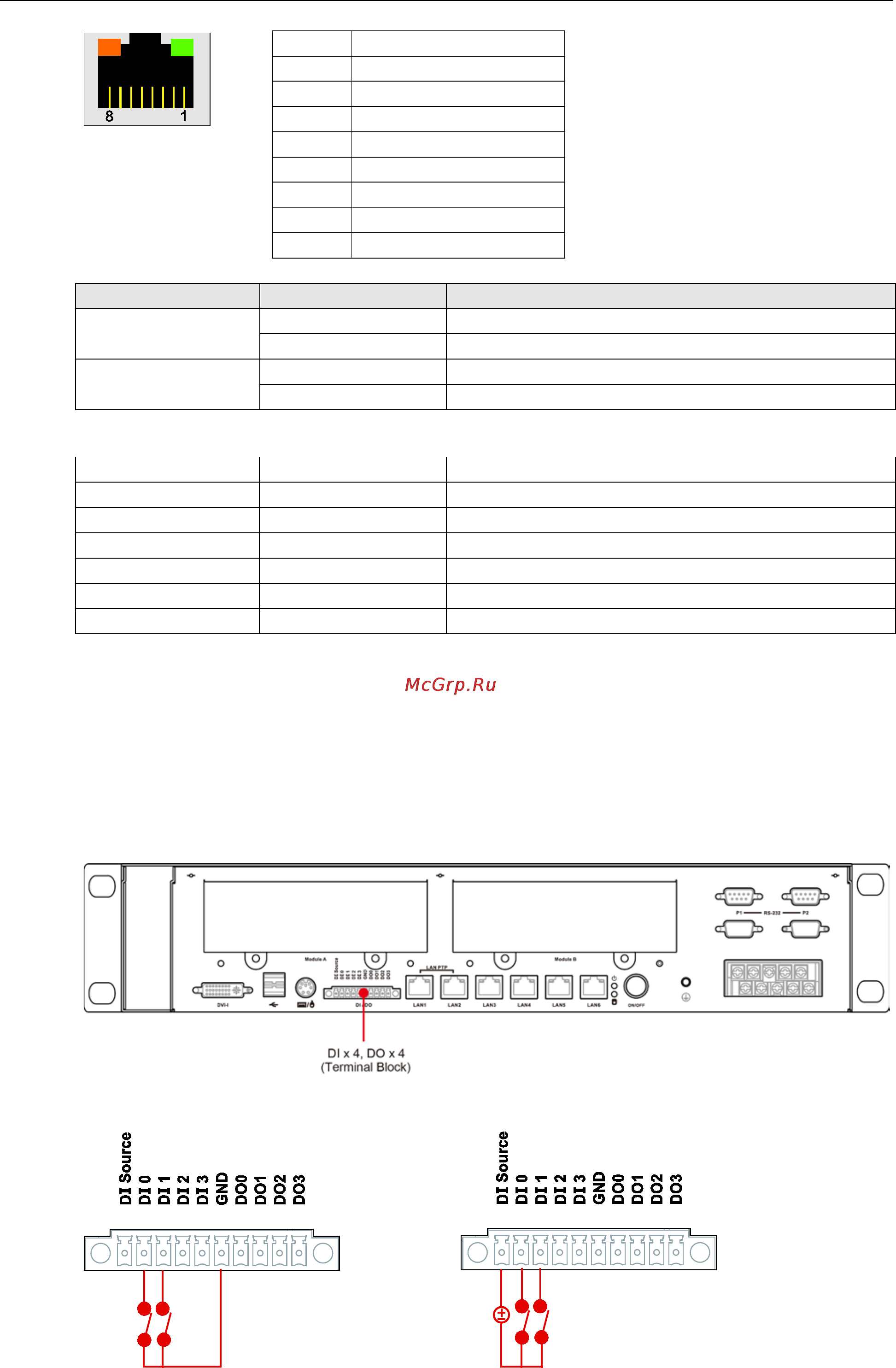

Connecting Digital Input/Output Channels

The DA-683 computer comes with 4 digital input channels and 4 digital output channels located on the rear

panel. These DI/DO channels can be connected with the terminal block. See the following figures for the

locations of the DI/DO channels and the wiring methods.

Digital Input Dry Contact Wiring

Digital Input Wet Contact Wiring
