DA-683 Hardware BIOS Setup
3-3
Modifying BIOS Settings
Navigate the BIOS menus using the arrow keys; up (↑) and down (↓) arrows navigate the menu, while left (←)
and right (→) arrows will open or close sub-menus from entries marked with a triangle (▲) at the beginning of
the line.
Advanced Settings

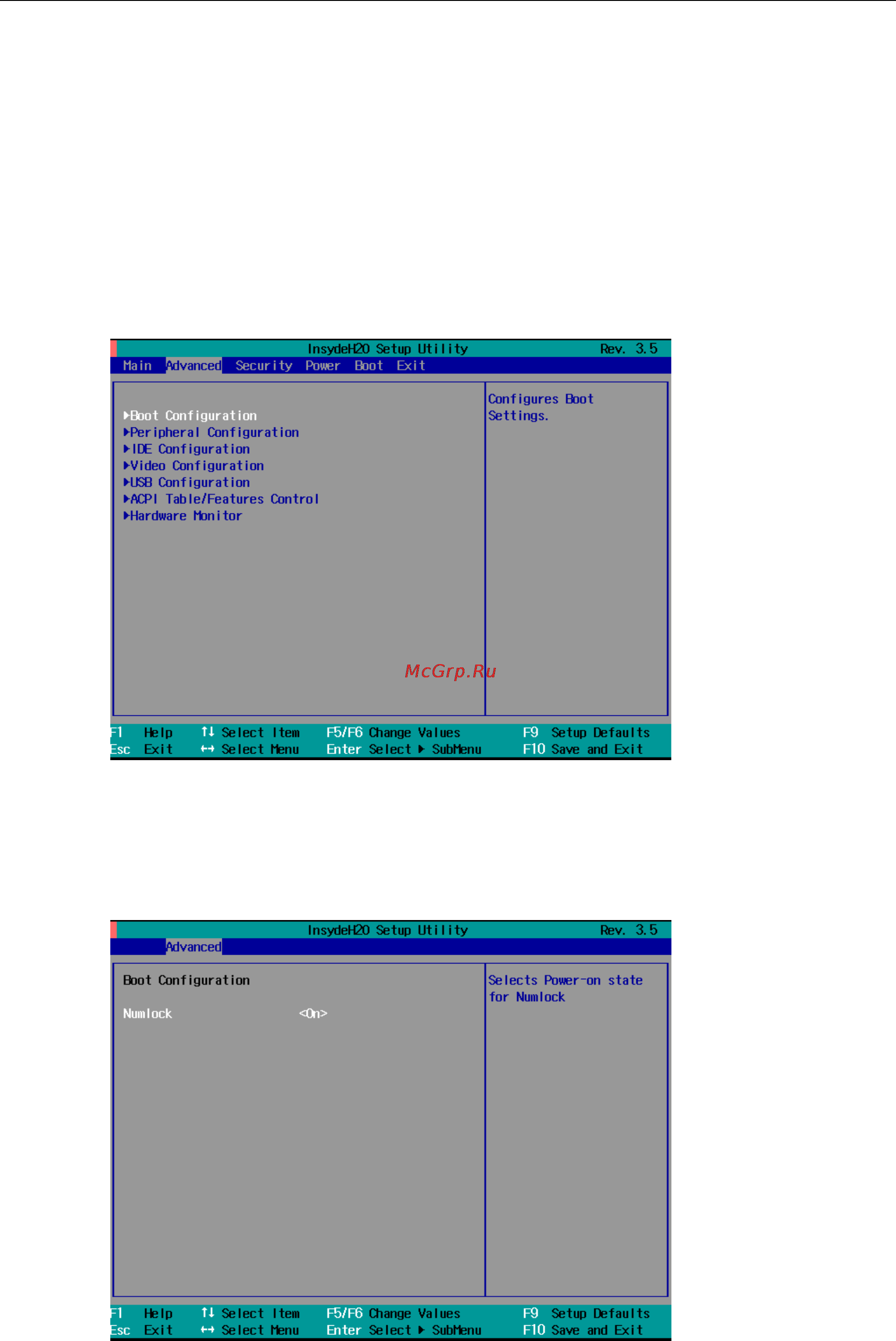

Select the Advanced tab to display the Advanced Features selections. These configuration options will allow
you to configure the boot process and the on-board chipset settings for things like video, UBS interfaces, ACPI,
and hardware monitors.
Boot Configuration
This item allows users to turn the keyboard’s number pad (found to the right of the alphabetic input on most
keyboards) to on or off when first booting up. If turned off, the number pad will not be available for use.
Option: On (default), Off.
