DA-683 Hardware Hardware Installation
2-19

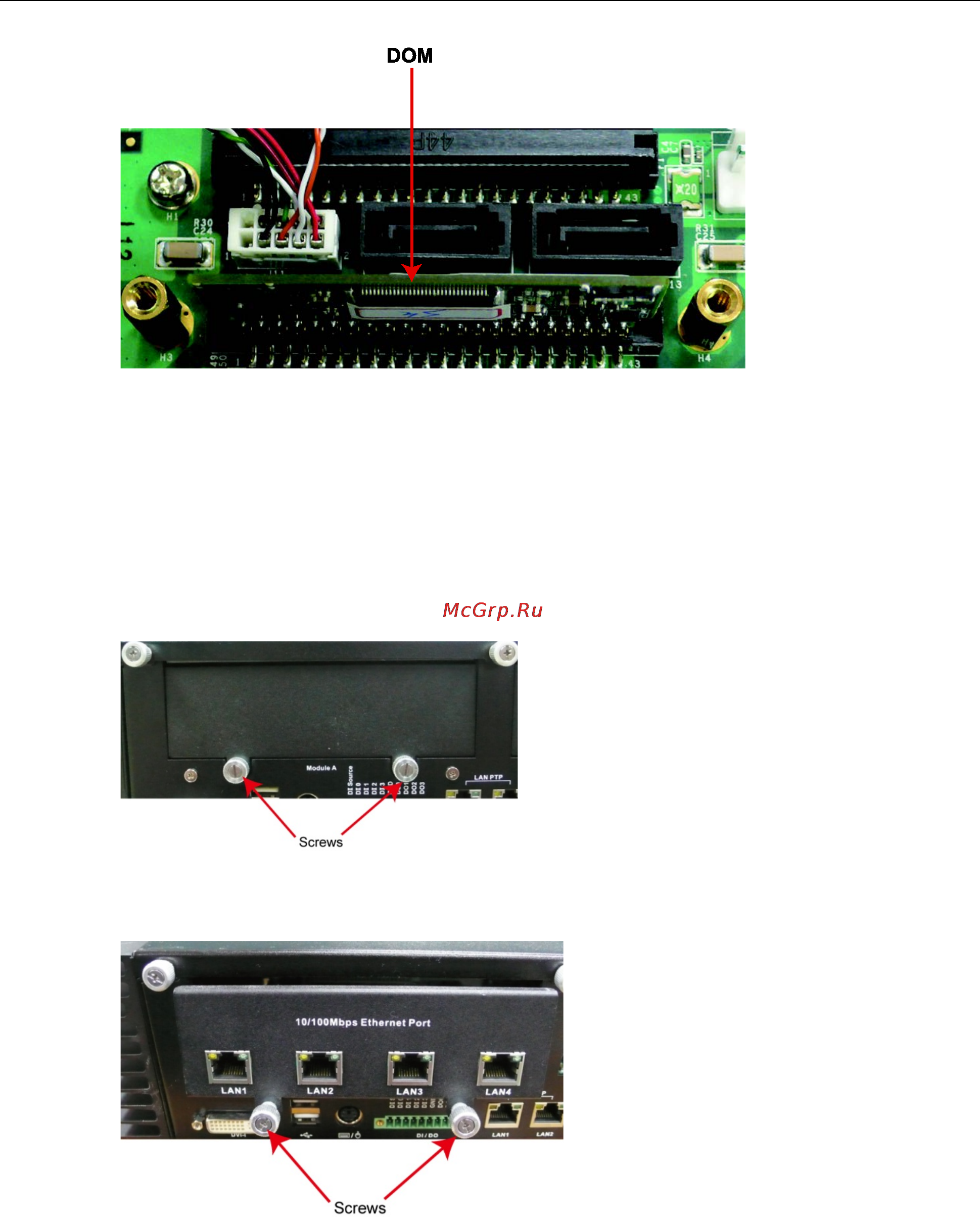

Inserting and Removing Expansion Modules
The DA-683 embedded computer has two expansion slots for inserting expansion modules. Expansion modules
can be installed in either Slot A or Slot B. To insert or remove expansion modules, follow these instructions.
1. Disconnect the DA-683 from the power source.
2. Unscrew expansion module A or module B on the rear panel.
3. Carefully insert or remove the expansion module by pushing or pulling on the two screws at the same time.
By pushing or pulling on the two screws evenly, you can ensure that the board is inserted or removed
without being damaged.
