DA-683 Hardware BIOS Setup

3-14

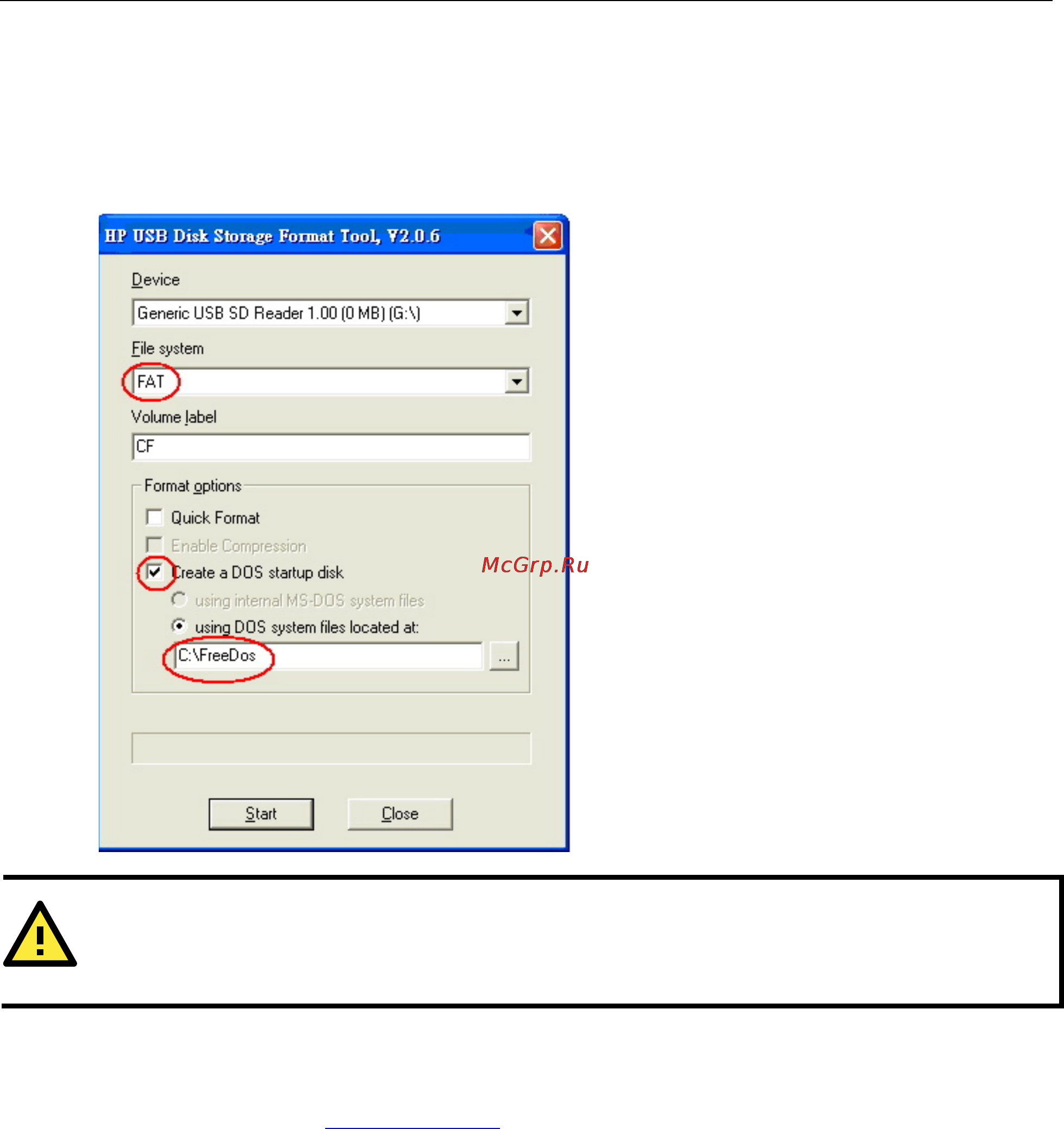

Type the disk name in the Volume label field.

Check the option Create a DOS startup disk under format options.

Specify the directory of the system files (for example, C:\FreeDOS).

Click Start to format and create the USB disk.

ATTENTION

We suggest you use a USB drive with under 2 GB in disk space, as larger USB drives may not support the FAT

file format and consequently fail to boot.

Step 2: Prepare the Upgrade File.

You must use the BIOS upgrade installation file to upgrade the BIOS. You can send your request to Moxa's

technical support team at support@moxa.com

to get an updated version of the BIOS.

1. Get the BIOS upgrade installation file. The file name should have following format: 683xxSxx.exe (xx

refers to version numbers)

2. Copy the file to the Bootable USB Disk.

Step 3: Run the upgrade program on the DA-683 computer

1. Reboot the computer, and press F12 while booting up to go to the Boot Manager

2. Select USB Disk as the first boot source. Press Enter to continue.
