UC-8410/8416/8418/8430 Managing Communication
4-22
A successful ping indicates that you have created a VPN system that only allows authorized users from one
internal network to access users at the remote site. For this system, all data is transmitted by UDP packets
on port 5000 between OpenVPN peers.
7. To shut down OpenVPN programs, type the command:
# /etc/openvpn/openvpn-bridge stop
Setup 2: Ethernet Bridging for Private Networks on the Same Subnet

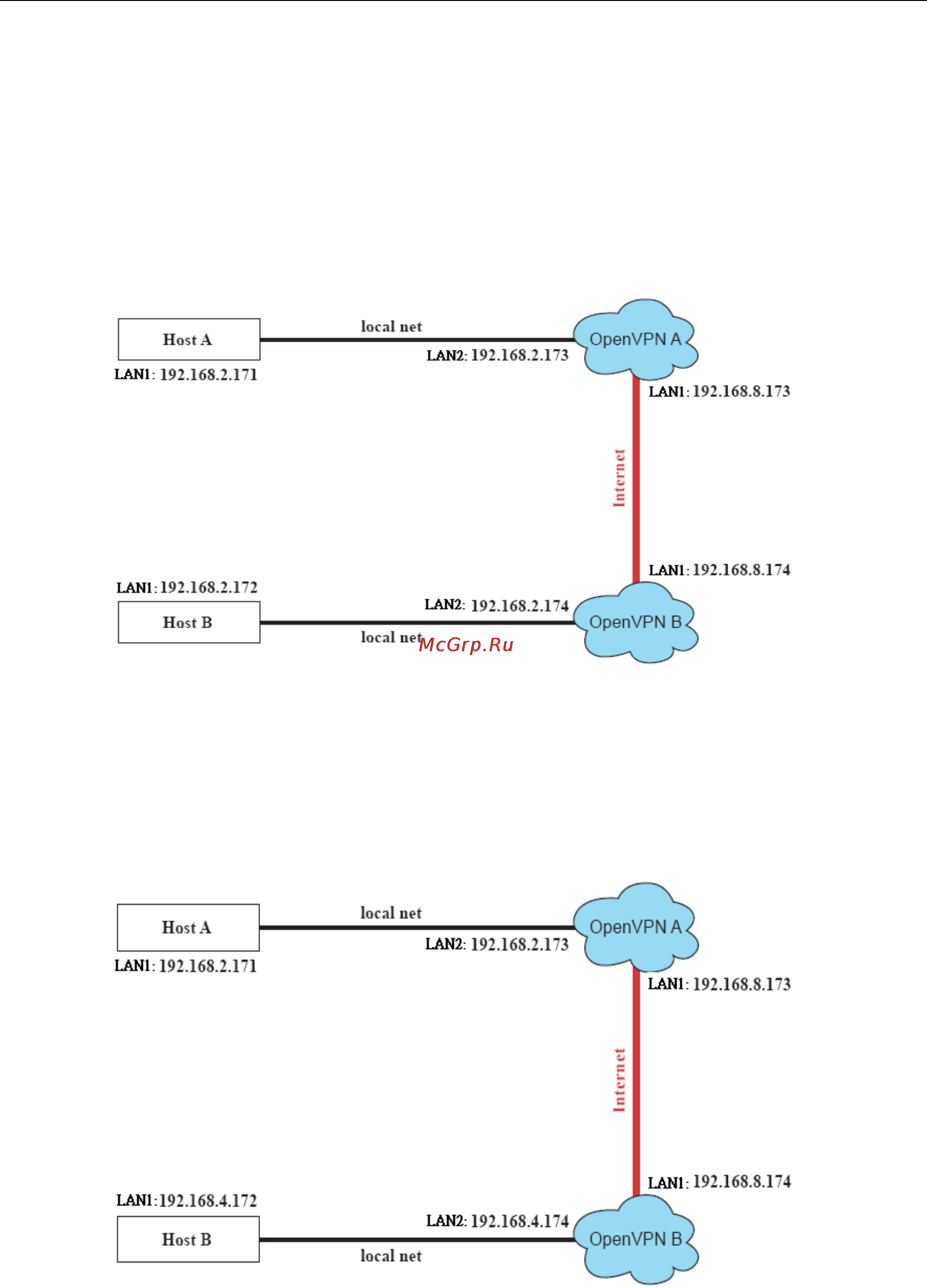

1. Set up four machines as shown in the following diagram:
2. The configuration procedure is almost the same as for the previous example. The only difference is that you
will need to comment out the parameter “up” in “/etc/openvpn/tap0-br.conf” and
“/etc/openvpn/tap0-br.conf”.
Setup 3: Routed IP
1. Set up four machines as shown in the following diagram:
