Moxa UC-8416-T-LX [75/90] A firmware upgrade procedure
![Moxa UC-8416-T-LX [75/90] A firmware upgrade procedure](/views2/1199789/page75/bg4b.png)
A

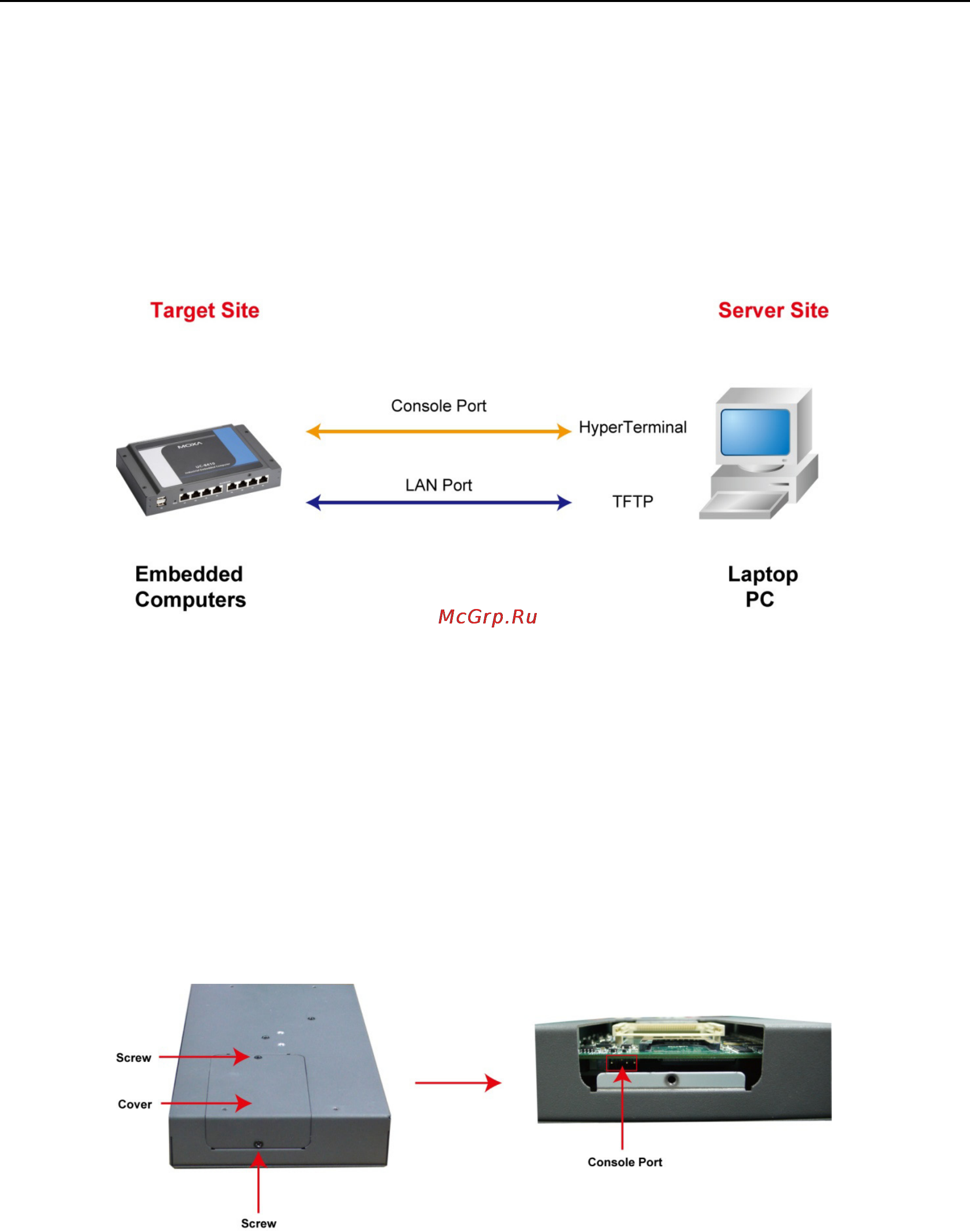

A. Firmware Upgrade Procedure
Moxa provides a boot loader utility for firmware upgrade or recovery. You will need the following items to use
this utility.
1. The embedded computer that you would like to upgrade or recover.
2. A PC or a laptop computer.
3. A console port cable for connecting through HyperTerminal.
4. A cross-over Ethernet cable for upgrading the firmware through a TFTP server and LAN port.
5. The firmware for the embedded computer.
There are three steps in the recovery process.
A. Configure HyperTerminal for the console port.
B. Download and installation of the TFTP program.
C. Download the firmware and upgrade through HyperTerminal.
If you are familiar with Moxa embedded computers and the firmware upgrade procedure, you may skip to Step
C. However, we suggest that you go through all three steps to ensure the firmware upgrades properly.
A. Configure HyperTerminal for the Console Port.
1. Unscrew the cover on the back of the UC-8410 series embedded computer.
2. Connect the console port with a console port cable to your PC.
