UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-8
2. You will need to enter the IP address of the embedded computer and your PC. Follow the below to configure
the IP addresses.

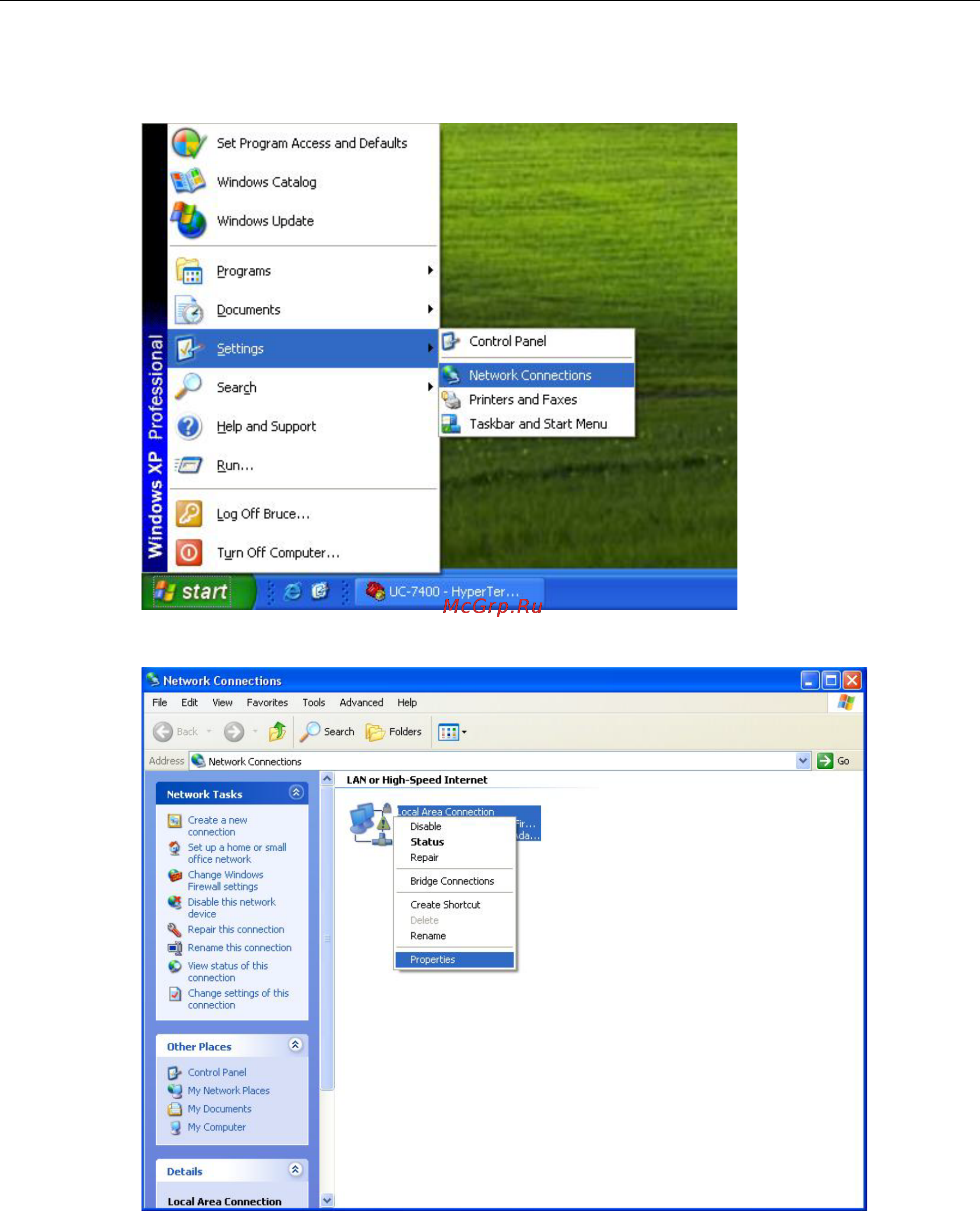

a. From Start Settings, select Network Connections.
b. Right-click on Local Area Connection, and then select Properties.
