UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-10

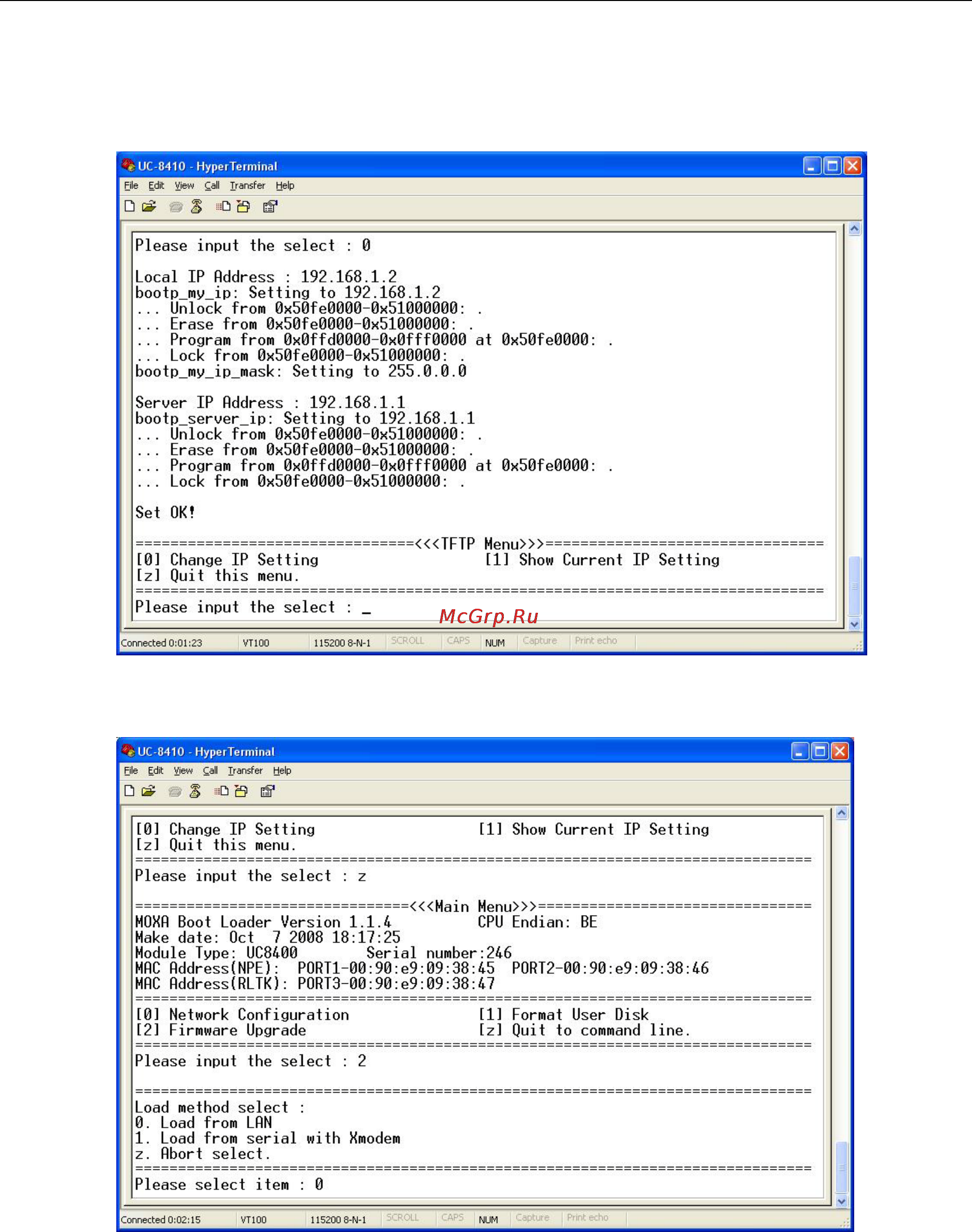

3. Go back to the boot load utility menu and assign the local IP address, and then enter the server IP address.
The local IP address is the IP address of the embedded computer. Note that the local IP address must
be on the same LAN as the server IP address. For example, if the server IP address is 192.168.1.1, you
can choose a local IP address between 192.168.1.2 to 192.168.1.254.
4. Select [z] Quit to command line to exit the IP setting option. Next, select [2] Firmware Upgrade, and
then [0] Load from LAN to continue.
