UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-13

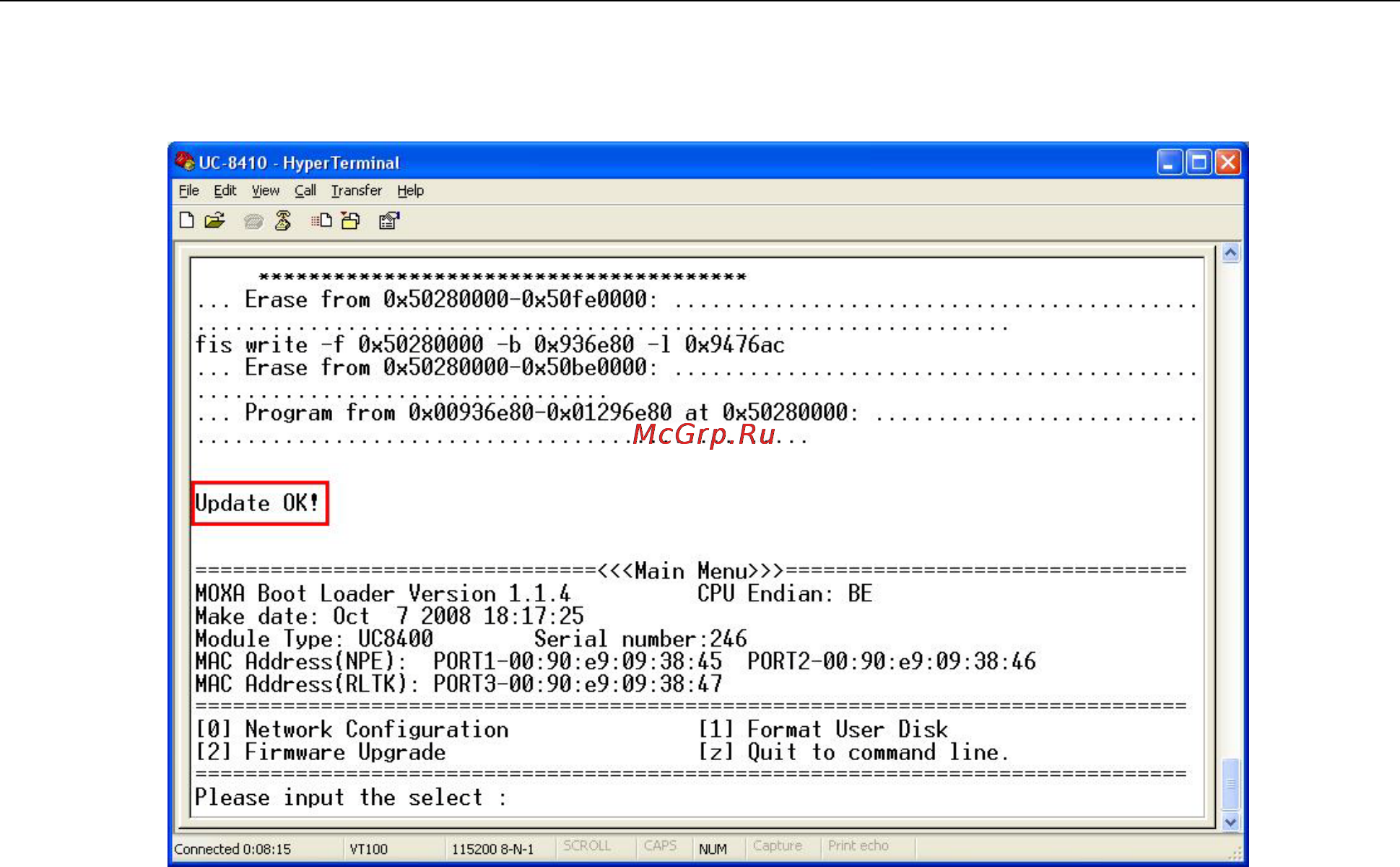

10. When you see Update OK, the firmware upgrade is finished. At this point, you may reboot the embedded
computer to complete the firmware upgrade or recovery from the boot loader utility.
11. If you cannot reboot your embedded computer (after following all the steps above), contact Moxa’s
technical support staff for further assistance.
