UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-6

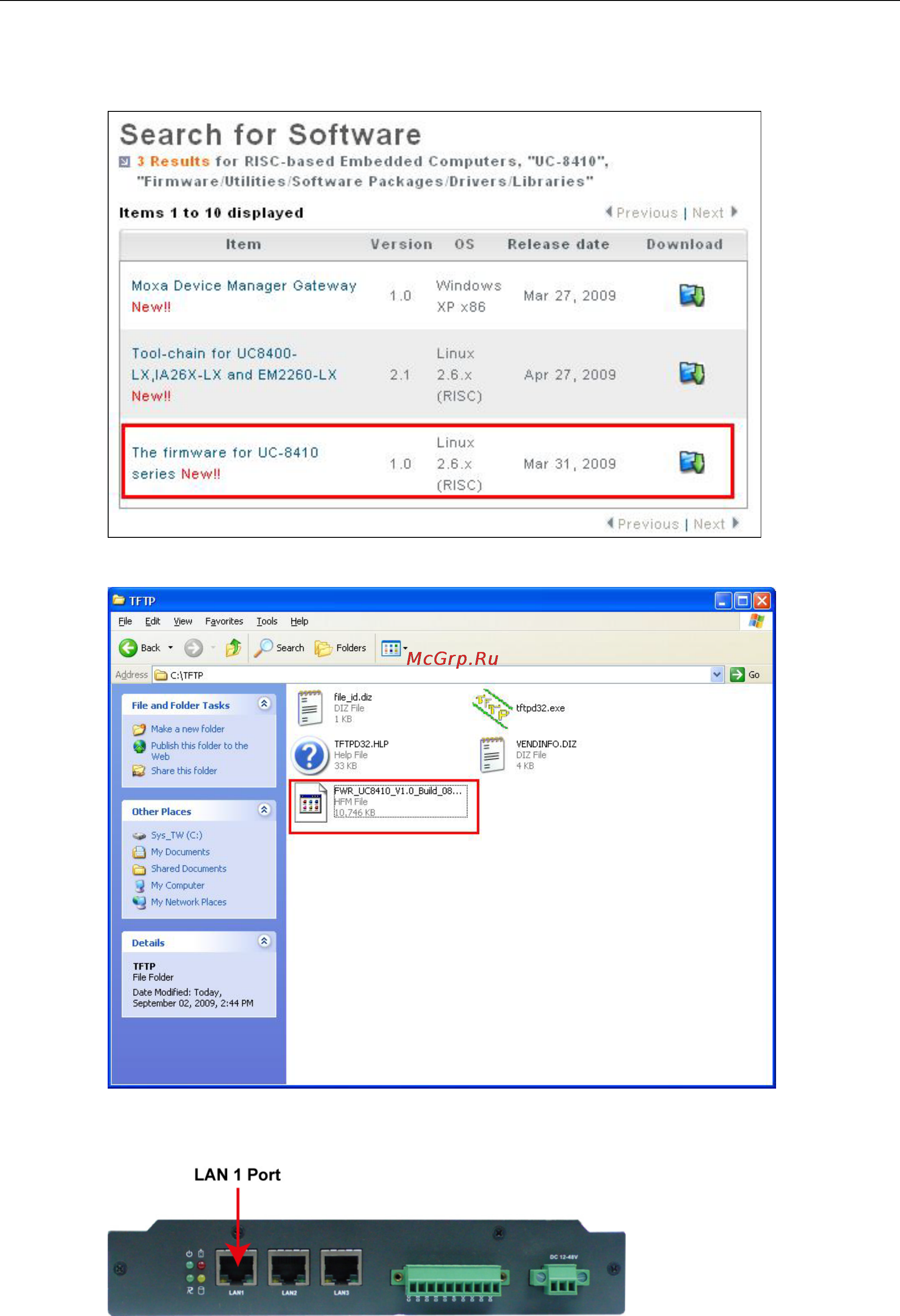

3. In the software list, select the firmware for your model. Choose the appropriate OS and then click the
download icon to start downloading the new firmware. Note: Check the filename, it may differ from
the filename shown below.
4. Put the latest firmware icon in the same directory as the TFTP files.
5. Next, connect LAN1 of the embedded computer to your PC using a cross-over Ethernet cable. The LAN1
port is located on the rear panel of the embedded computer.
