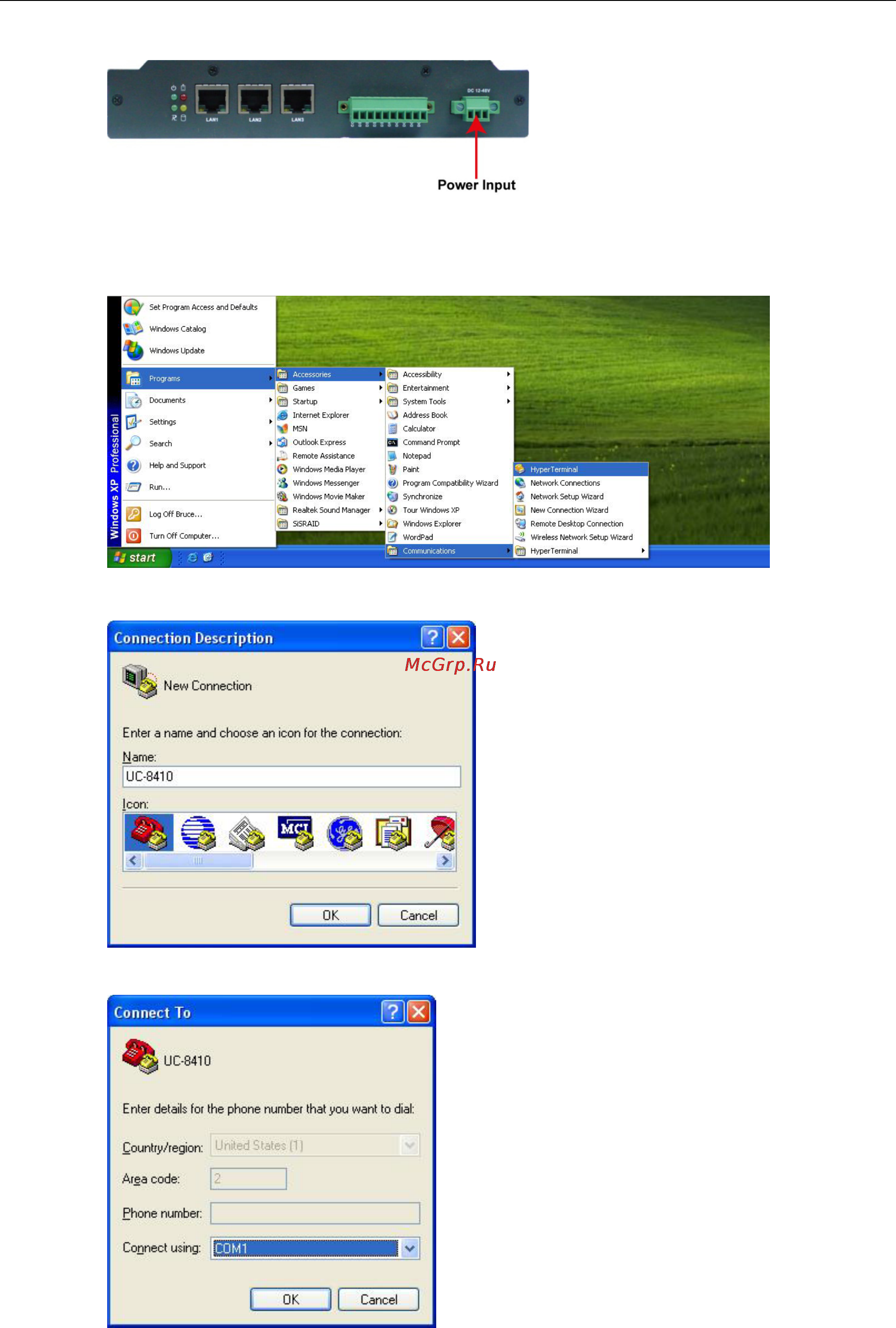

UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-2
3. Connect your embedded computer to the power source. The power input is located on the rear panel.
4. Launch a serial communication tool to access your embedded computer. We suggest that you use
HyperTerminal, which is built into Windows XP. Click Start
Programs Accessories
Communications and then select HyperTerminal.
5. After HyperTerminal launches, enter UC-8410 or another name for the connection.
6. Click Cancel when the “Connect To” window opens.
