UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-4

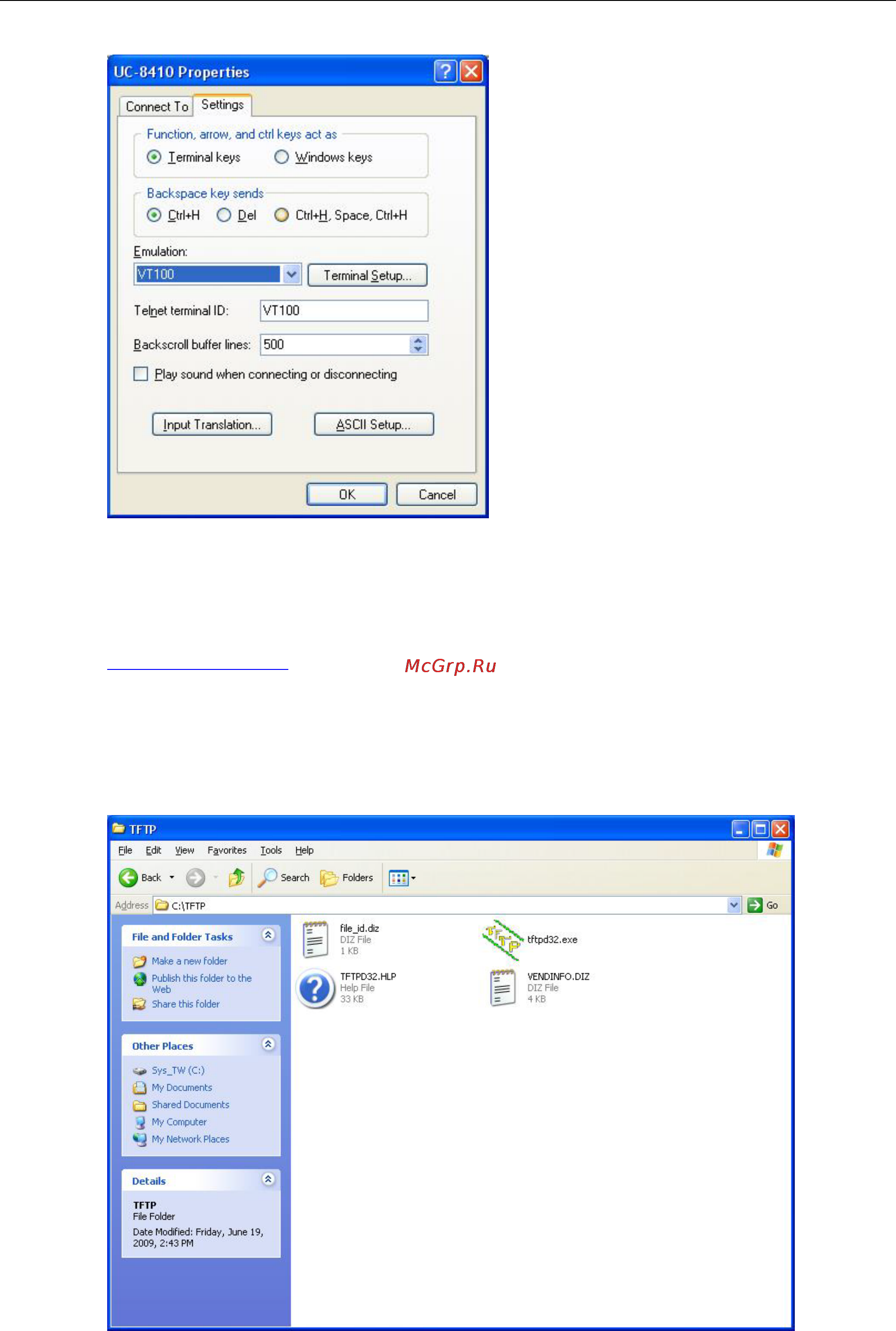

10. Click the Settings tab and then select VT100 (for Emulation). Click OK to complete the configuration.
B. Download and Installation of the TFTP Program
1. You will need to download a free TFTP server package to upgrade the firmware for the boot loader utility.
Link to the following URL to download:
ftp://papa.indstate.edu/
Download the TFTP program located in the following path:
/winsock-1/Windows95/Daemons/TFTPD/
Download the file named tftpd32d.zip.
2. When you have finished downloading, extract the files to your PC.
