UC-8410/8416/8418/8430 Firmware Upgrade Procedure
A-5

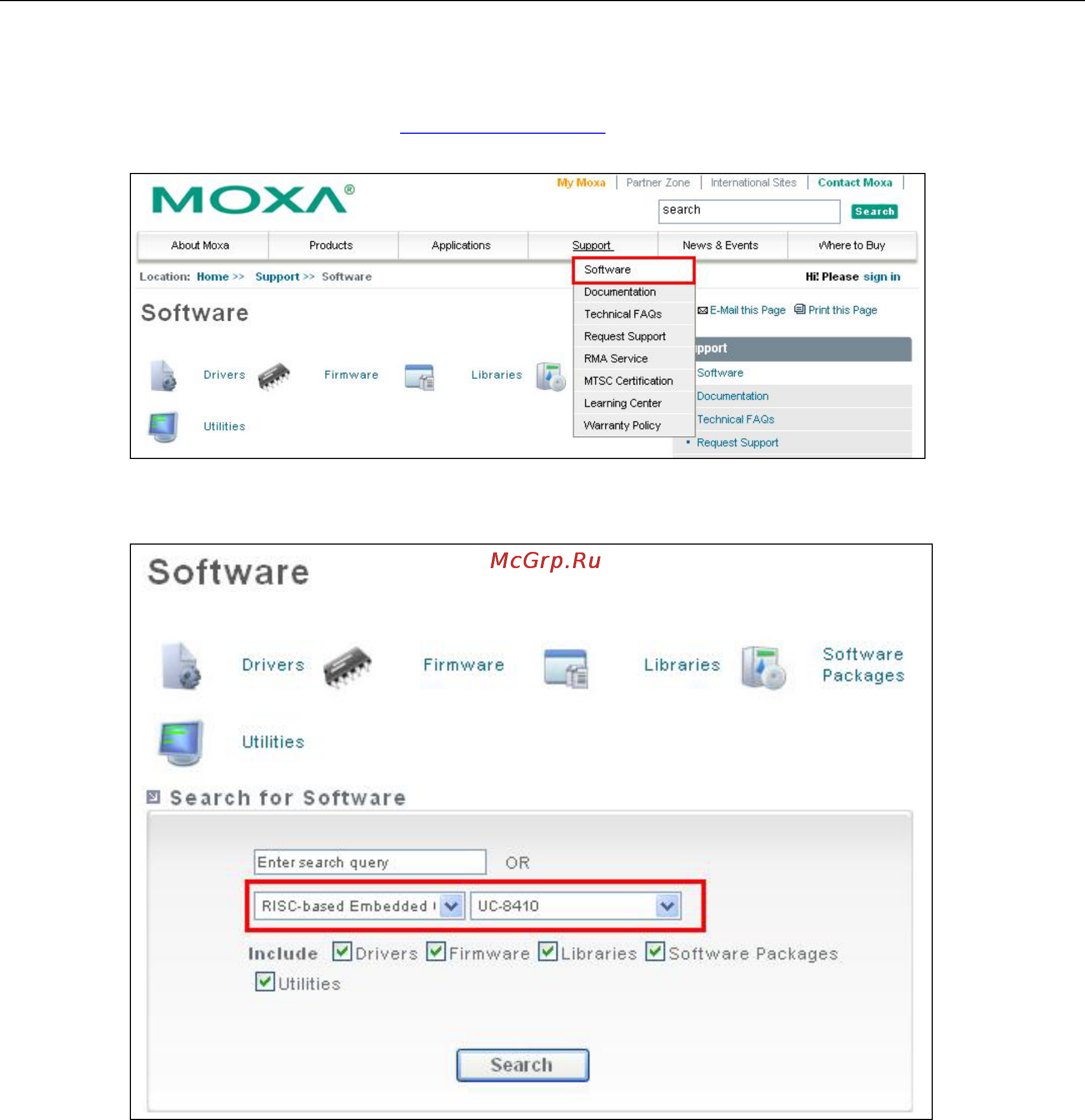

C. Download and Upgrade the Firmware through HyperTerminal.
1. Connect to Moxa’s website at http://www.moxa.com, and then select Software from the Support
drop-down menu.
2. Under Search for Software, select the product line and then choose the specific product model. Click on
Search to continue.
