Moxa MC-7210-MP-T [19/47] Connecting to the usb device
![Moxa MC-7230-DC-CP-T [19/47] Connecting to the usb device](/views2/1200554/page19/bg13.png)
MC-7270-MP-T Series Hardware Connection Description
3-6

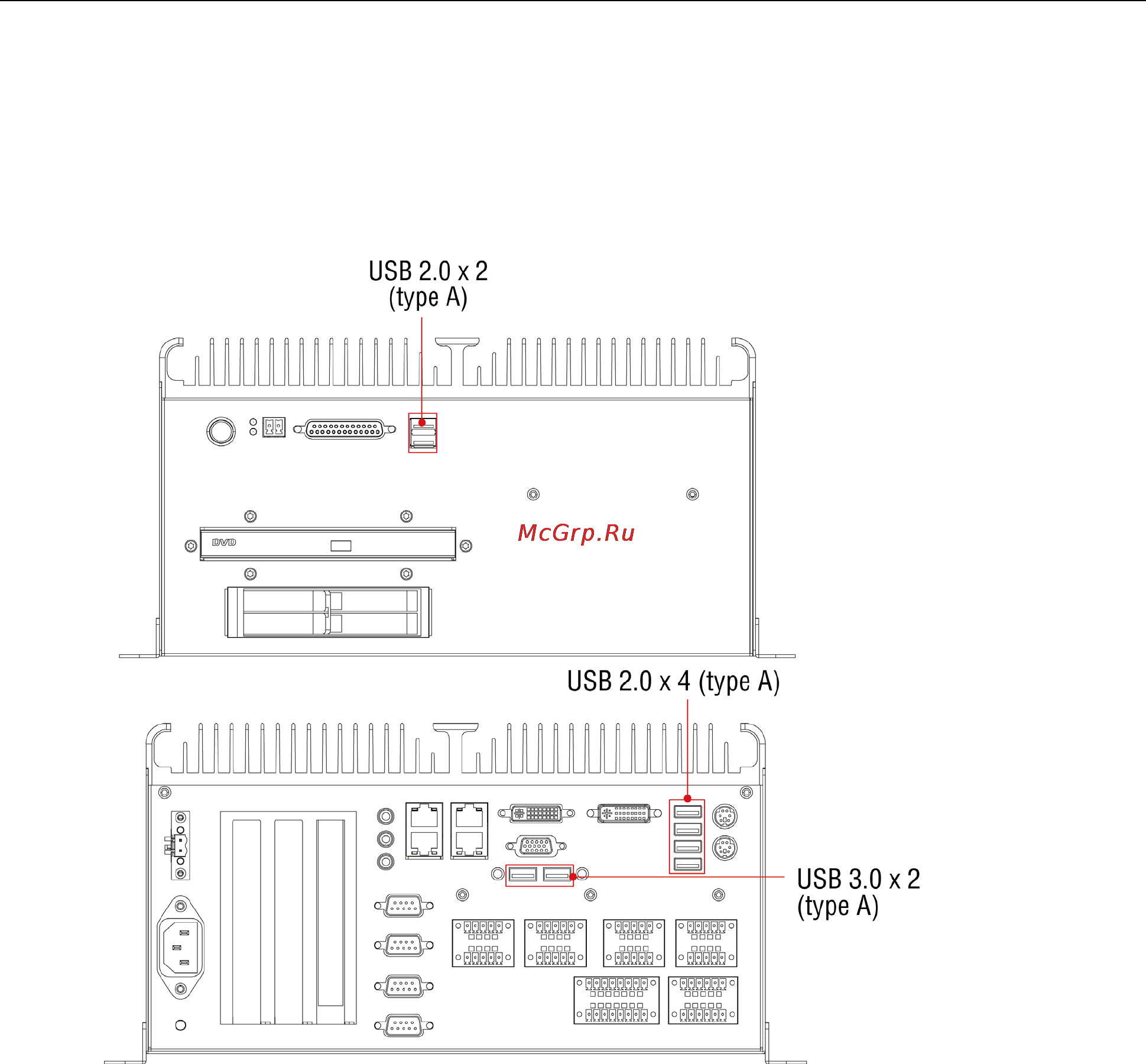

Connecting to the USB Device
The MC-7270-MP-T comes with two USB 2.0 hosts on the front panel, four USB 2.0 hosts, and two SuperSpeed
USB 3.0 hosts on the rear panel. The USB ports support peripherals such as a keyboard or mouse, or storage
devices such as a portable HDD or DVD-ROM. Please note that USB 3.0 interfaces are not supported by the
Windows XP platform.
