MC-7270-MP-T Series Configuring Serial Ports
C-2

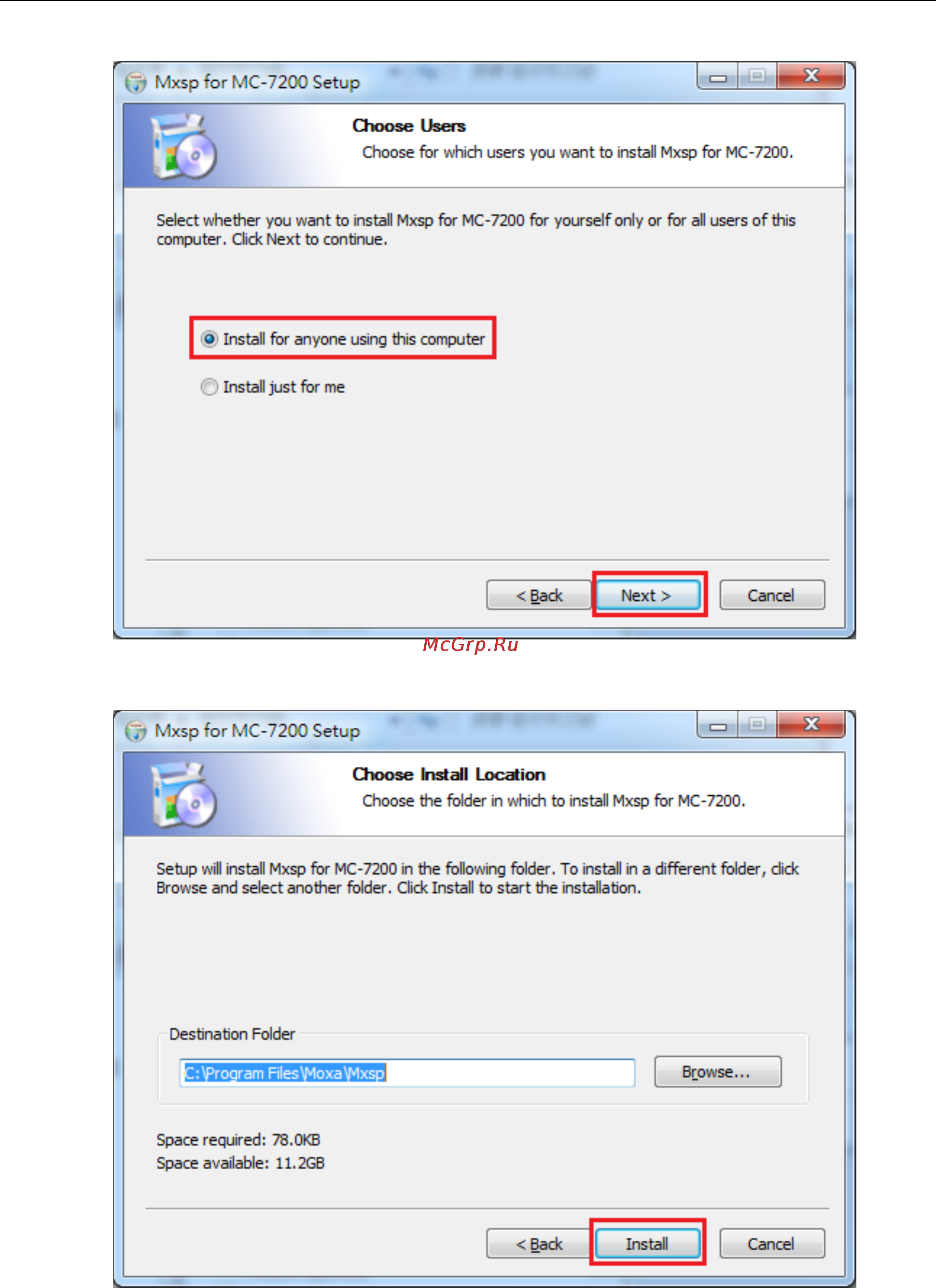

2. Select Install for anyone using this computer or Install just for me and then click Next > to proceed.
3. Specify which folder on this computer you would like the application to be installed in, and then click
Install.
