MC-7270-MP-T Series Configuring Serial Ports
C-4

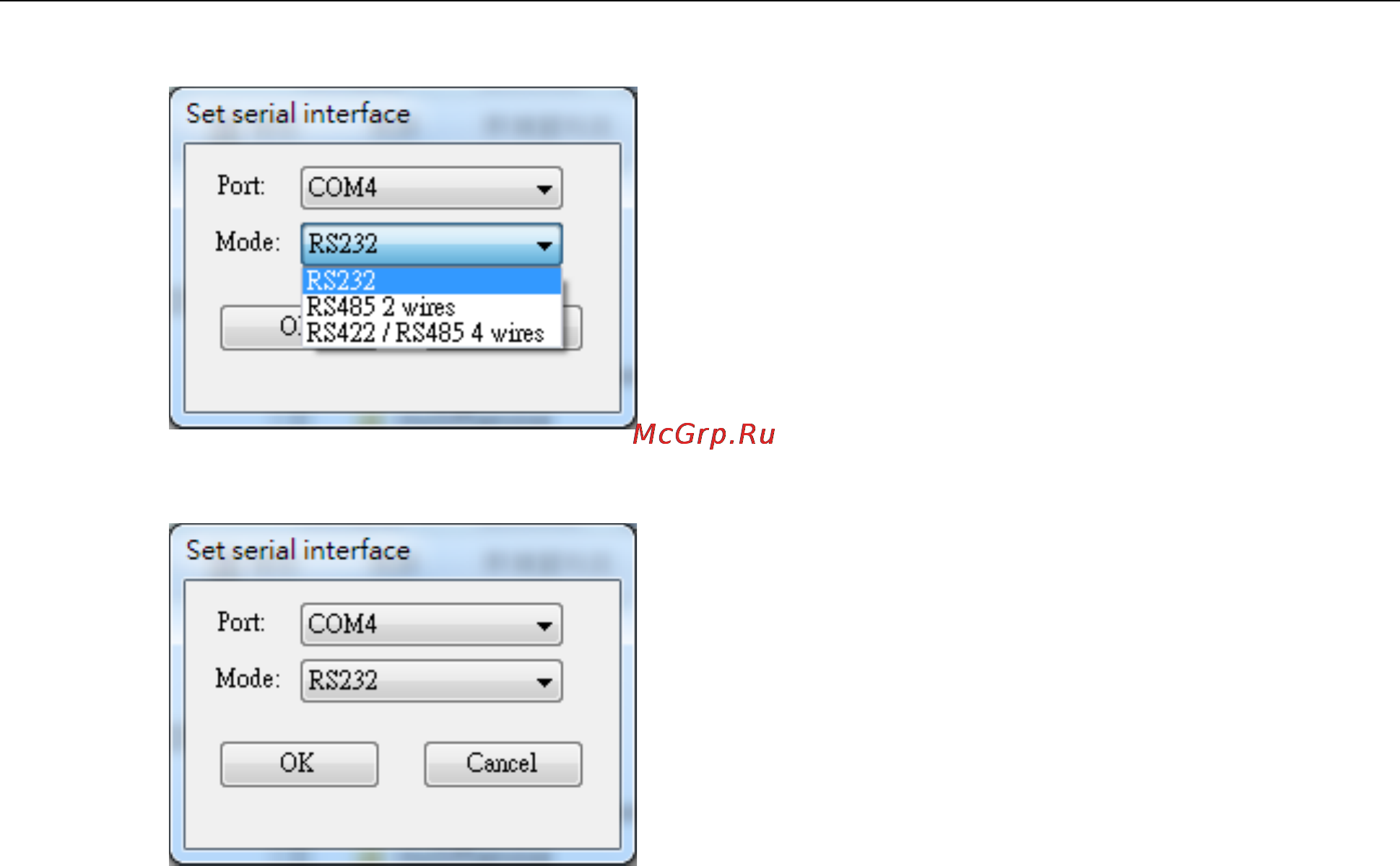

4. Select “RS232”, “RS485 2 wires”, or “RS422/RS485 4 wires” from the Mode drop-down menu.
5. For example, if you select “COM4” and “RS232” and then click OK, you can use COM4 as an RS-232 serial
port.
