MC-7270-MP-T Series BIOS Setup
4-4
Boot Configuration

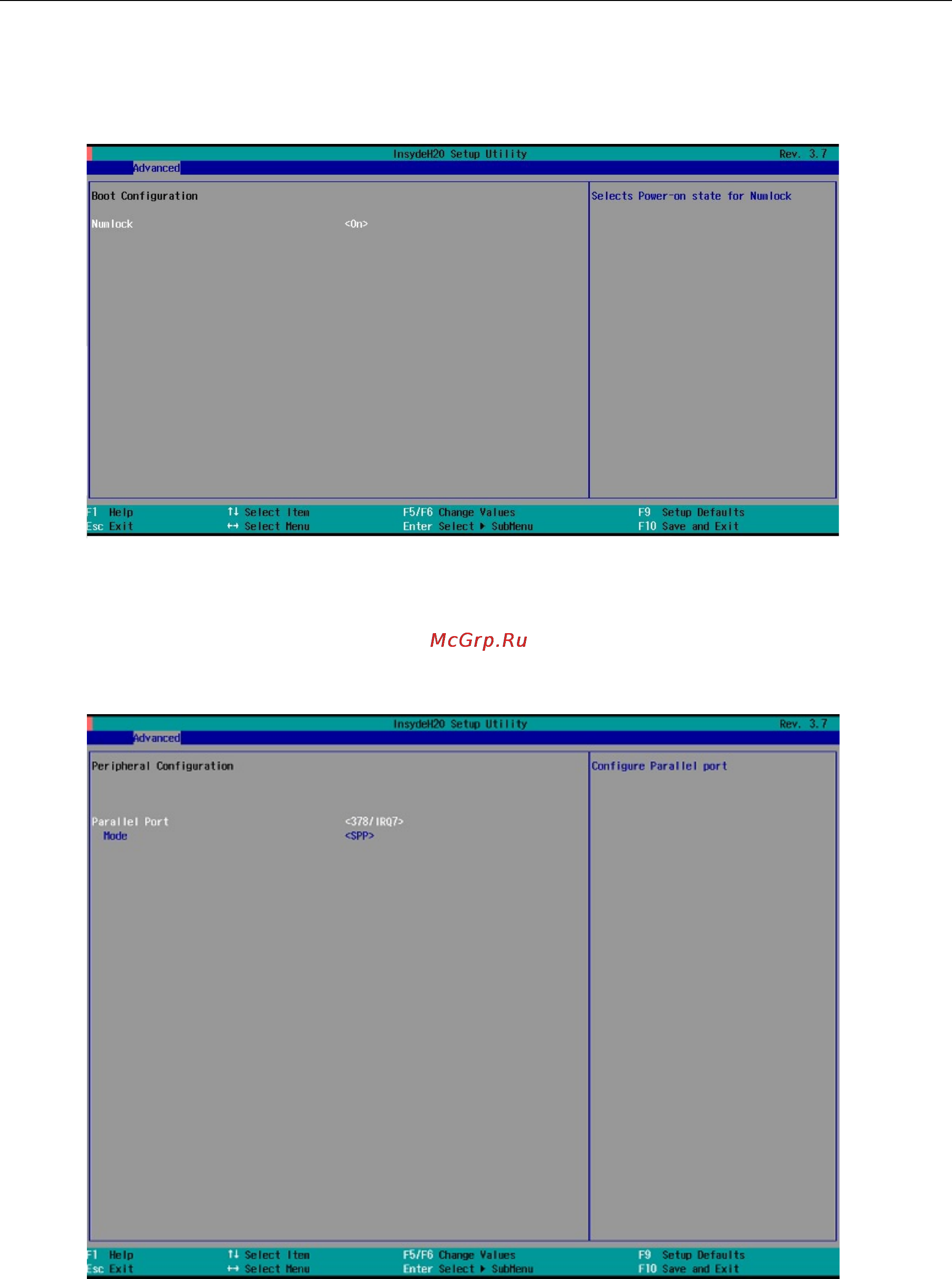

This item allows users to configure the default value of Numlock.
Option: On (default), Off.
Peripheral Configuration
This item allows you to configure the parallel port and audio device.
Parallel Port
This item allows you to configure the parallel port.
Options: 378/IRQ7 (default), Disabled
