MC-7270-MP-T Series BIOS Setup
4-10
Set Supervisor Password
This item allows you set the supervisor password. Select and then enter the password, and then confirm the
password again.
To delete the password, enter Set Supervisor Password and then enter the old password; then, leave the
new password fields blank, and press enter.

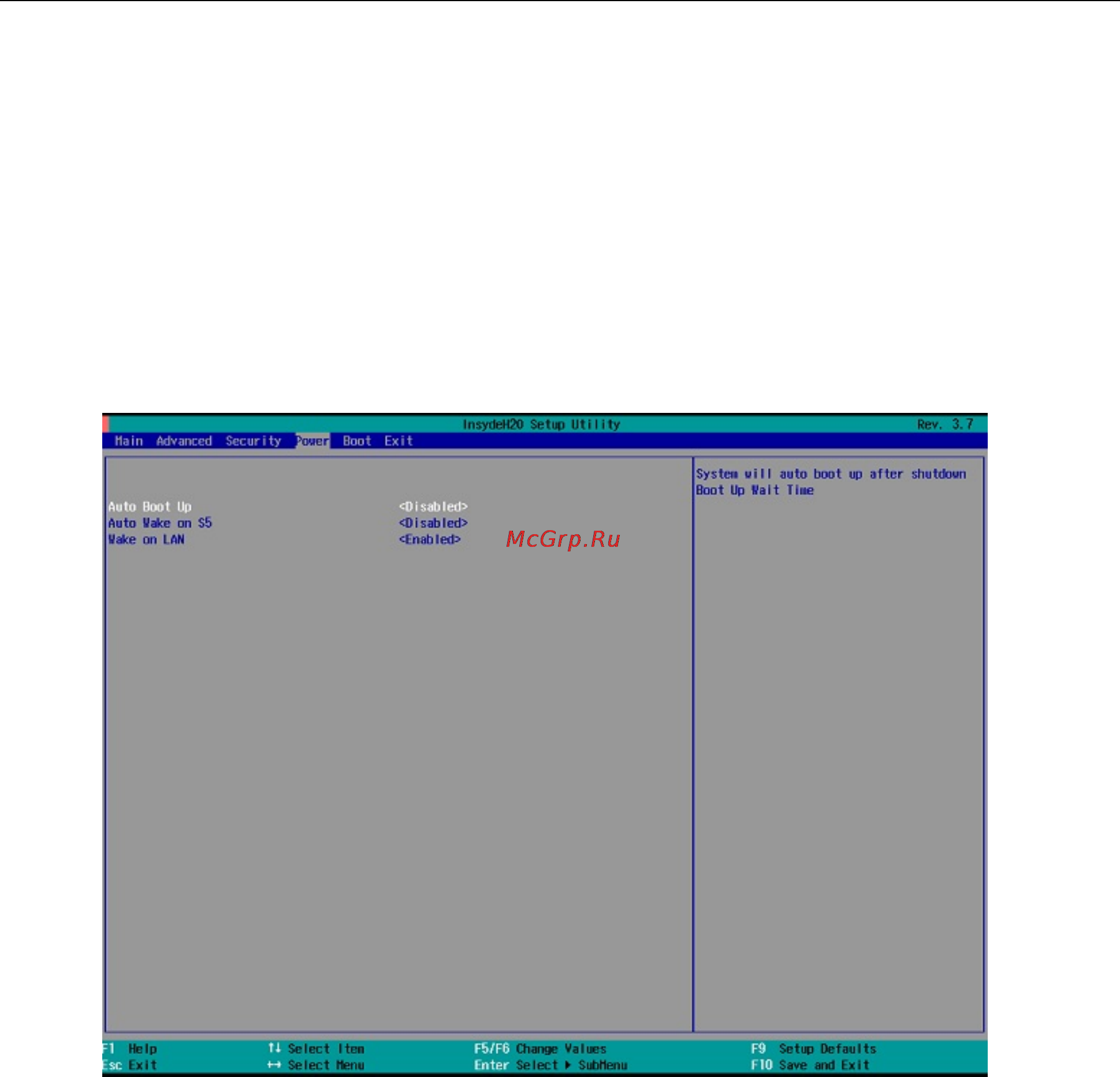

Power Settings
The section allows users to configure power settings.
Auto Boot Up
Enabling this function will cause the system to boot up automatically after the system has entered S5 for 1
minute.
Auto Wake on S5
Sets the RTC time to wake up the system.
Wake on LAN
Enables remote wake up by LAN magic-packet.
