MC-7270-MP-T Series BIOS Setup
4-12
EFI Device First
This item allows you to determine EFI device first or legacy device first. If enabled, EFI device will be the first;
if disabled, legacy device will be the first.
Options: Disabled (default), Enabled
Boot Delay Time
This item allows you to configure the delay time value for users to input hot key during POST time.
Options: 0 Second (default), 3 Seconds, 5 Seconds, 10 Seconds

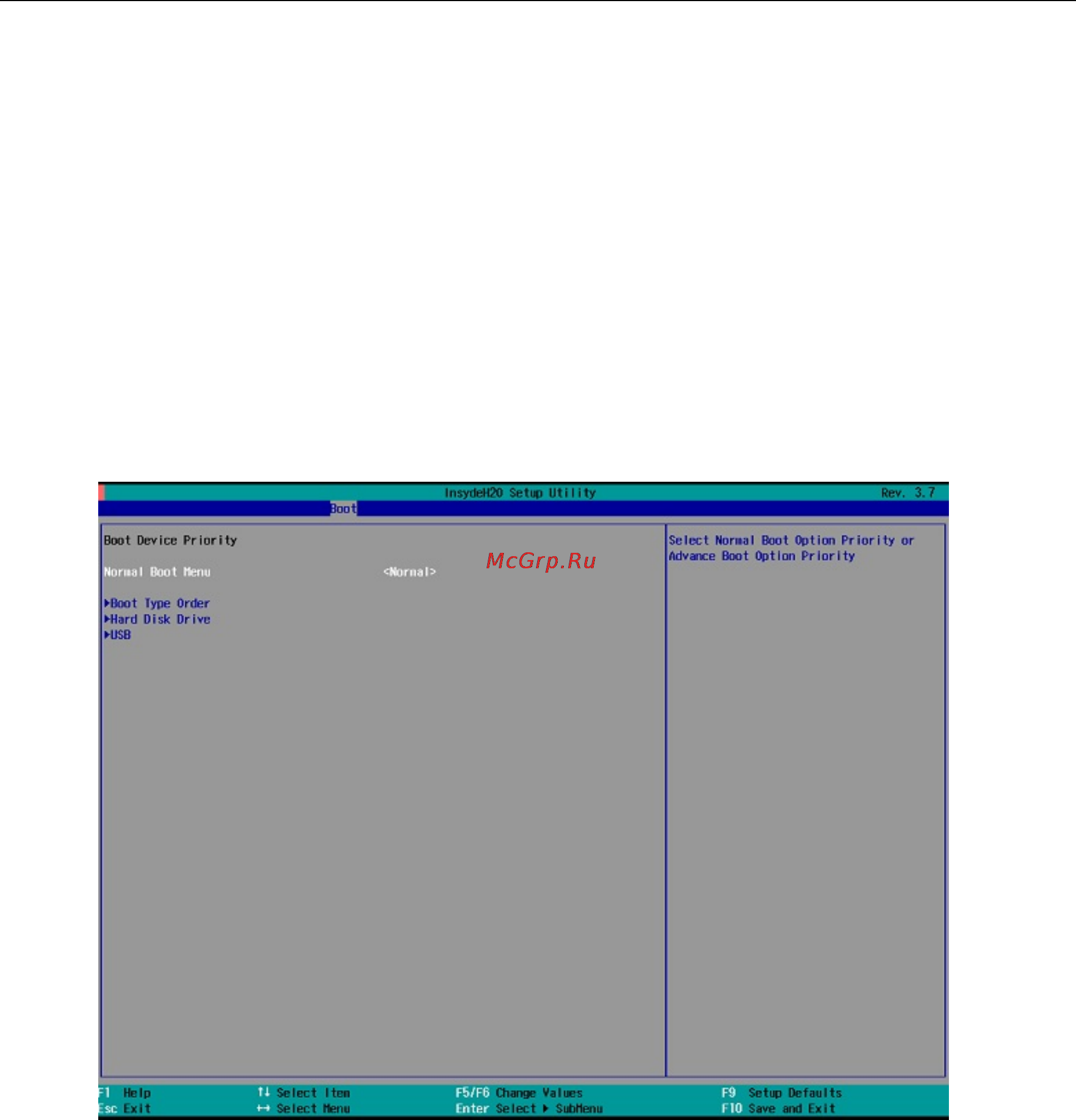

Boot Device Priority
Normal Boot Menu
This item allows you to configure the boot menu.
Options: Normal (default), Advance
Boot Type Order
This item allows you to select the boot order. Use F5/F6 to change values.
Options: Hard Disk Drive (default), CD/DVD-ROM Drive, USB, Others
Hard Disk Drive/USB Drive
This item allows you to view installed devices such as hard disk drives, USB drives, or CD-ROMs. For example,
if you have inserted a USB drive into the computer, it will appear here.
