C
C. Configuring Serial Ports
This chapter shows how to configure the 3-mode serial ports, COM3 and COM4, using the application in product
CD. The path to the application is <Software DVD>\MC-7270-MP-T\utility\mxsif
How to Install the Application

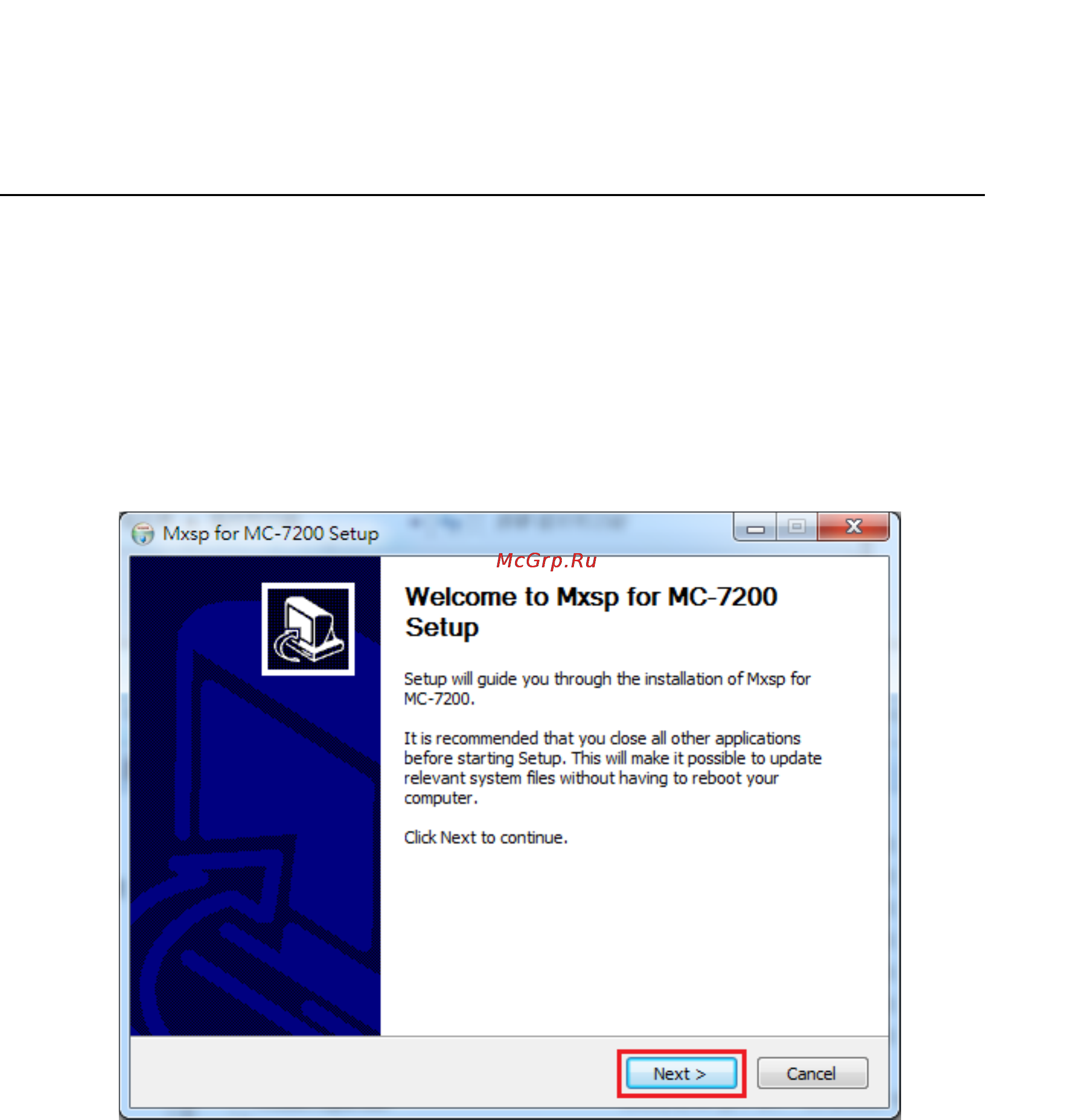

1. Double click the utility Mxsp_MC-7200_1.0_x64_Setup. When the following setup message appears,
click Next > to proceed.
