MC-7270-MP-T Series Hardware Connection Description
3-10
Installing PCI and PCIe Cards

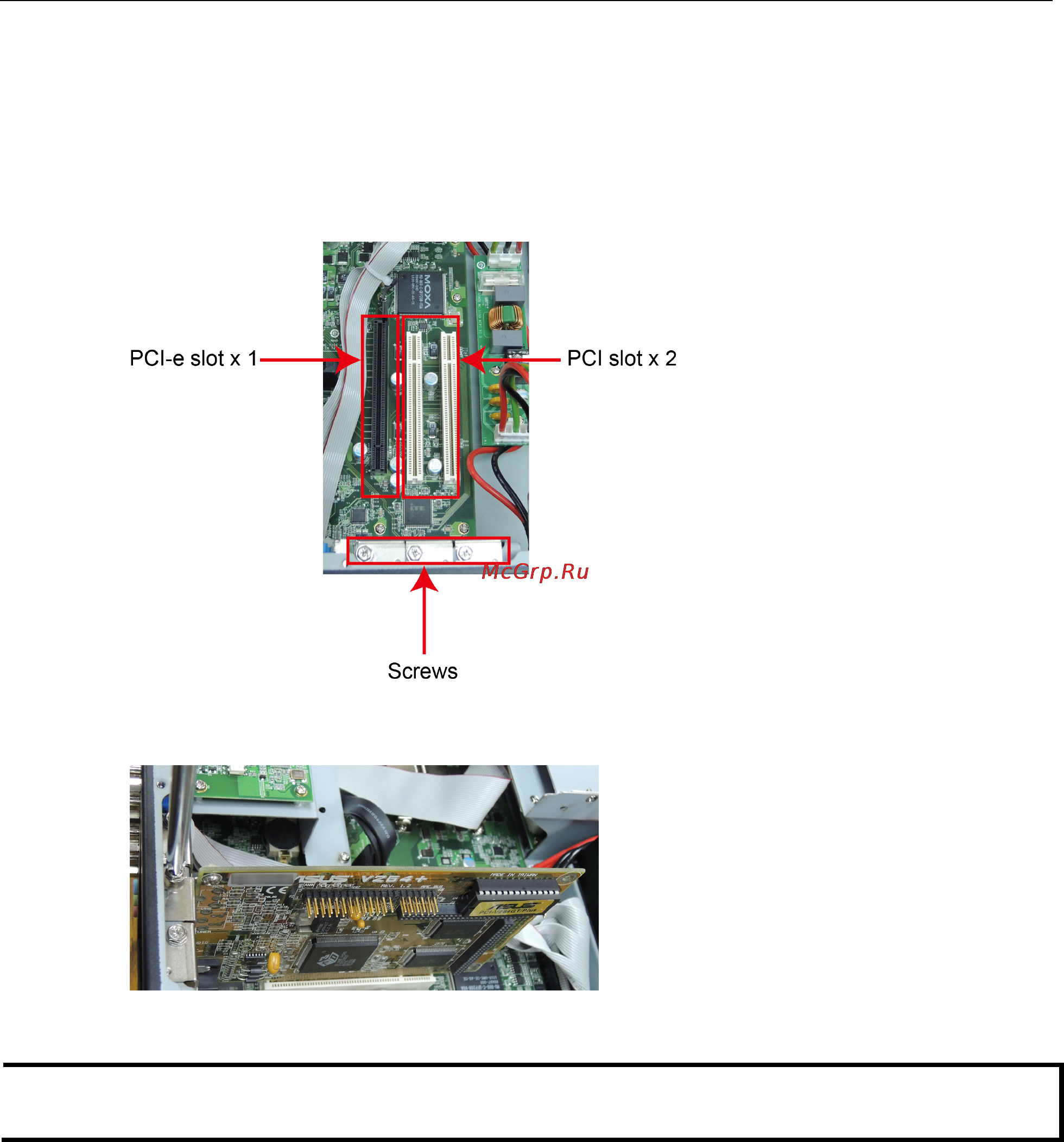

The MC-7270-MP-T has two universal PCI slots for installing various peripheral cards, such as a RADAR card or
PROFIBUS card. Also, a PCIe (x16) card is available for connecting an additional VGA graphic card. To install:
1. Unfasten the computer chassis (see the above section, Removing the Computer Chassis).
2. Remove the chassis to expose the PCI slots located in the corner of the computer’s motherboard.
3. Remove the screws on the slot protection covers.
4. Insert the PCI card or PCI-e card into the slot, and secure the card to the mounting frame.
5. When finished, replace the top cover of the computer and complete the installation.
NOTE Due to the limitations of Intel architecture, a native PCI bus is not available; a PCIe-to-PCI bridge design is
required. For some PCI cards this may reduce performance while accessing I/O space during data transfers.
