Moxa MC-7210-MP-T [20/47] Connecting to digital input and output channels
![Moxa MC-7270-DC-CP-T [20/47] Connecting to digital input and output channels](/views2/1200554/page20/bg14.png)
MC-7270-MP-T Series Hardware Connection Description
3-7
Connecting to Digital Input and Output
Channels

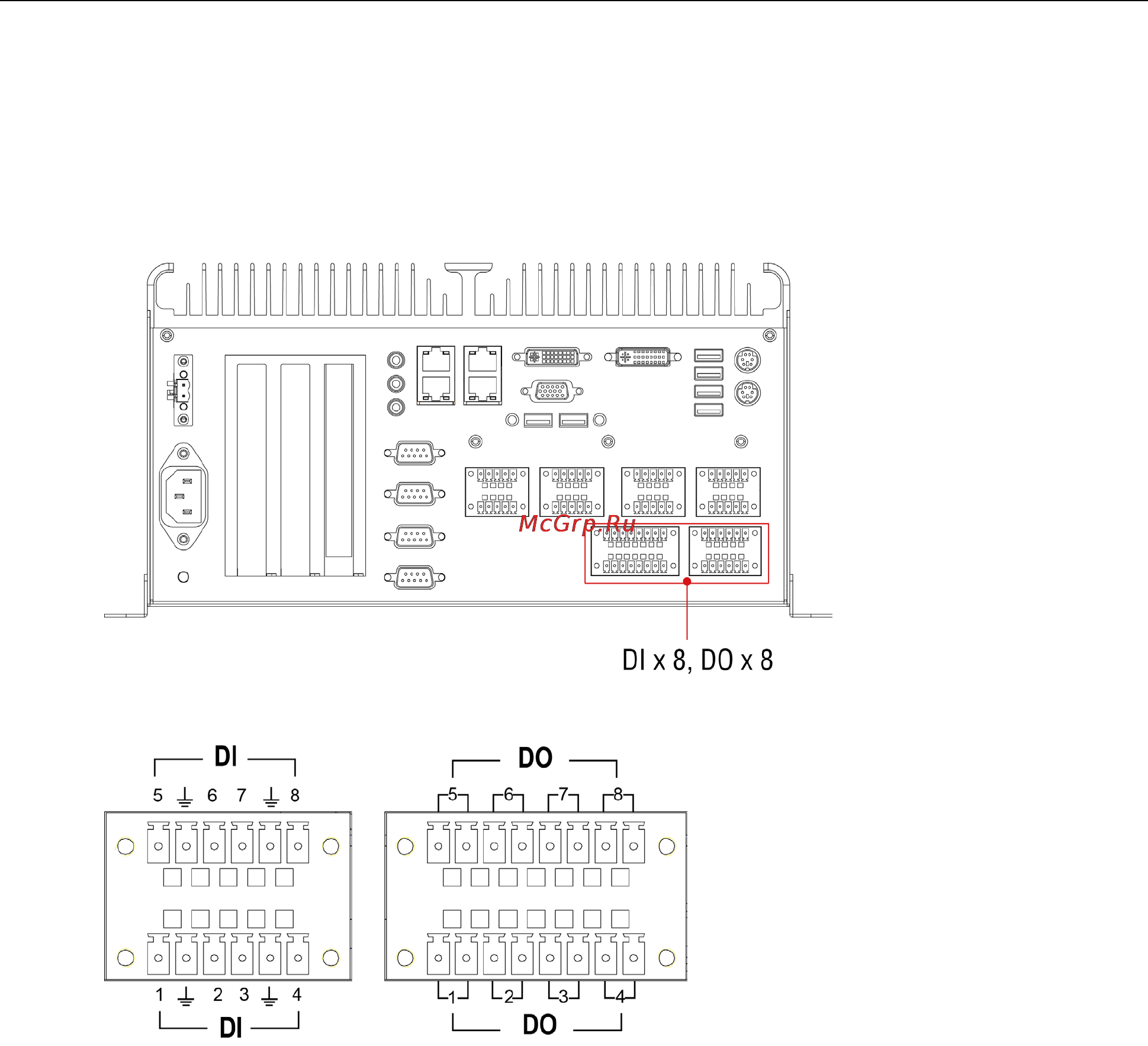

The MC-7270-MP-T comes with eight digital input and eight digital output channels on the rear panel. These
input/output channels can be connected with the terminal blocks that have been included in the package.
See the following figure for the pin assignments.
