MPC-2000 Series Hardware Introduction
1-9
Reliability
MTBF (mean time between failures):
202,309 hrs
Automatic Reboot Trigger:
Built-in WDT (watchdog timer) supporting 1-255 level
s for time interval system
reset, software programmable
Warranty
Warranty Period:
1 year
Details: See www.moxa.com/warranty
Optional Features for the MPC-2000 Series
CPU Default lntel Celeron
®
processor 1047UE (2M Cache, 1.40GHz), TDP 17 watts
Options • lntel Core™ i3 processor 3217UE (3M Cache, 1.60GHz), TDP 17 watts
• lntel Core™ i7 processor 3517UE (4M Cache, 2.80GHz), TDP 17 watts
RAM Default 4 GB
Option 8 GB (max.)
OS Default N/A
Options • Windows 7 Professional
• Windows XP Embedded
• Windows Embedded Standard 7
•
Windows XP SP3
Factory
Options
• (For MPC-2190 and MPC-2240) Projected capacitive touch screen (multi-touch, USB interface)
• Optical bonding
• Color calibrated for ECDIS
• Customized options for SSD drives

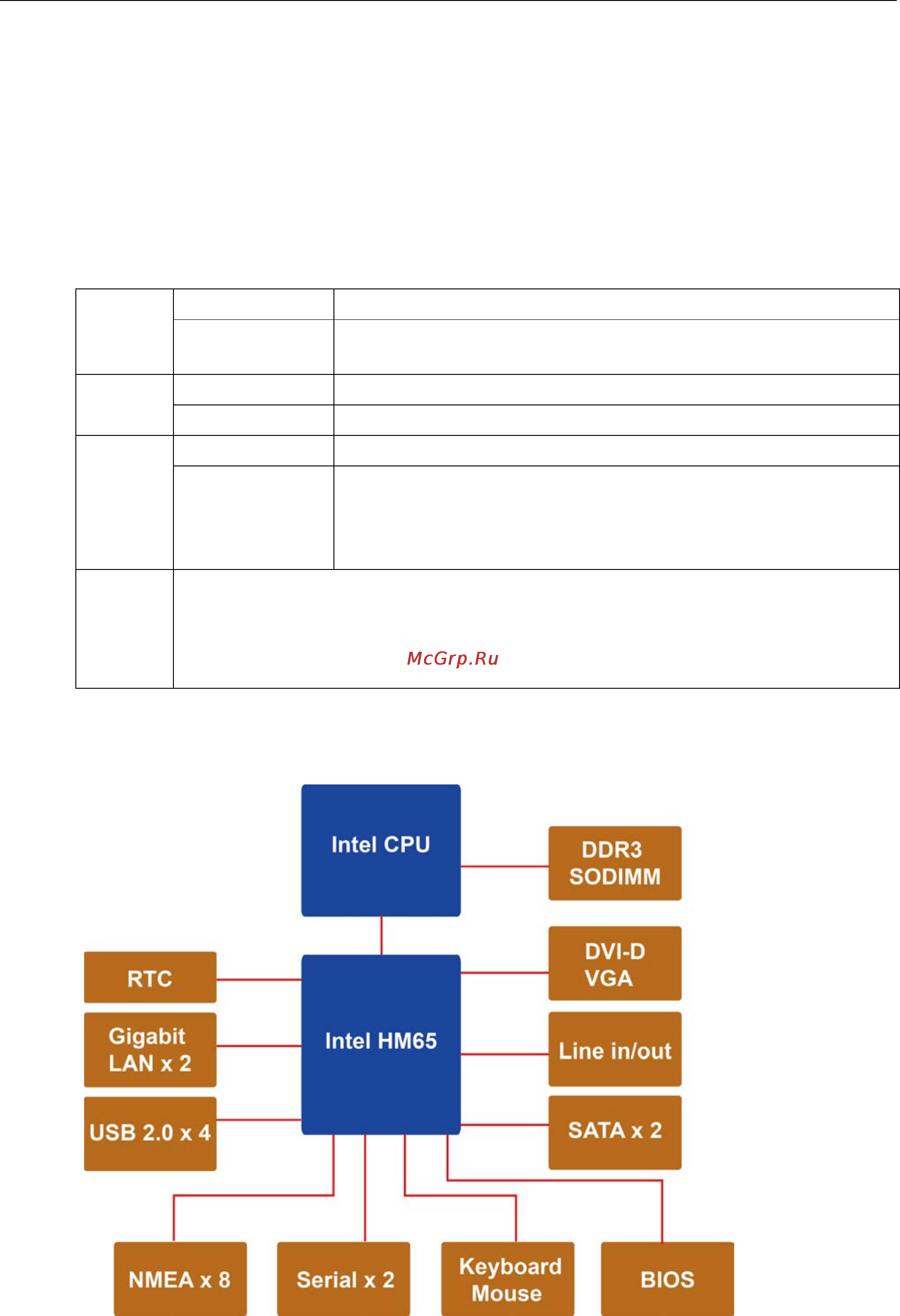

Hardware Block Diagram
