MPC-2000 Series Hardware Hardware Installation and Connection

3-11

Brightness

You can use the two brightness buttons to set the brightness of the screen. Press the plus (+) button to

increase screen brightness, and the minus (–) button to decreas screen brightness.

INFO

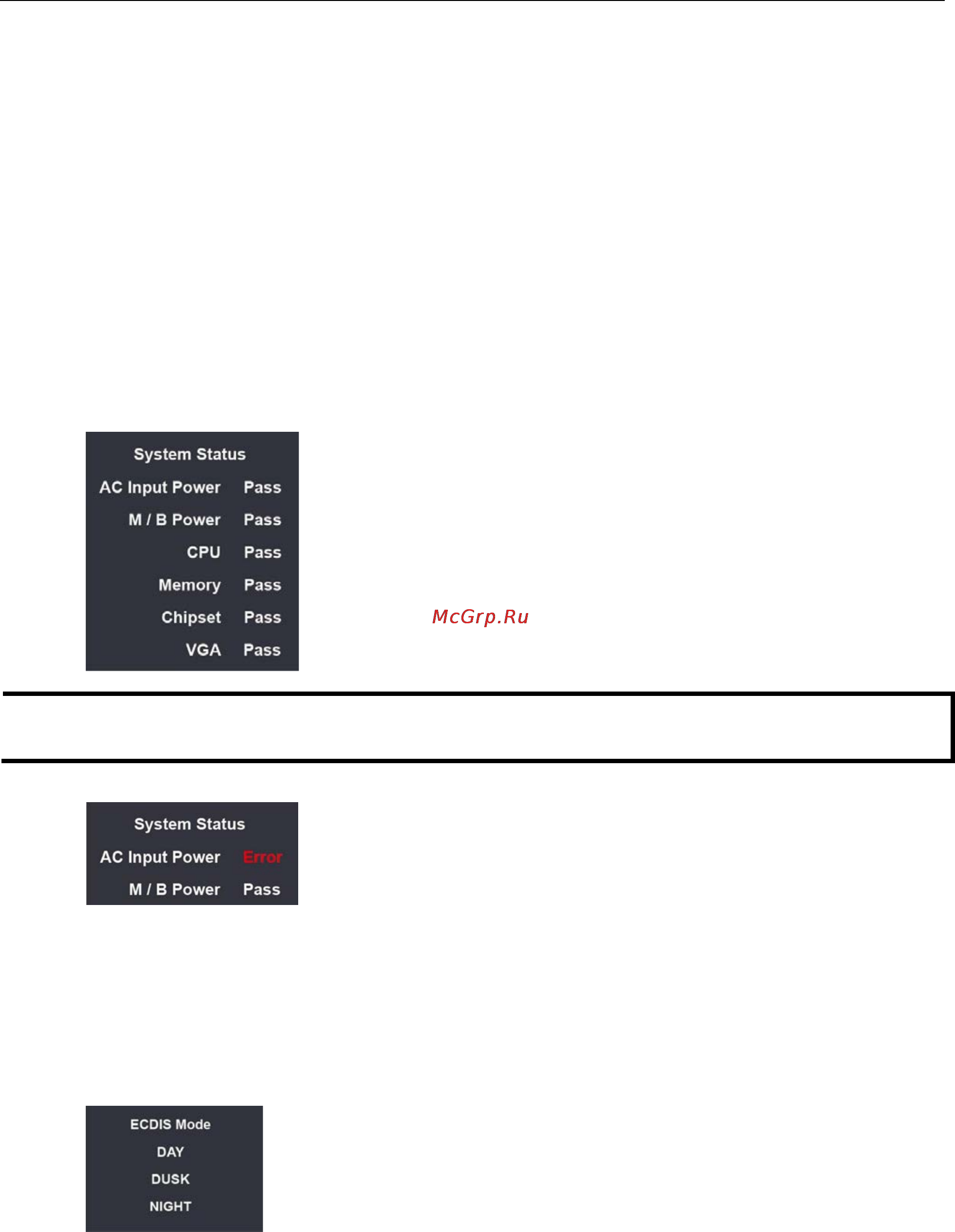

The INFO button displays a status report (shown at right) of the AC power supply, main board, CPU, memory,

the motherboard chipset, and VGA subsystems and components.

When the panel computer is working properly, the screen displays Pass for each subsystem/component (as

shown in the figure). The screen displays Error to indicate that a faulty component.

The CPU, memory, chipset and VGA components are detected only during the boot process. The AC and

motherboard power components are being monitored continuously.

NOTE

If the MPC

-2000 series is powered using a DC converter, the systems displays Error for the AC power status

the System Status screen

. This does not affect the operation of the MPC-2000 series.

ECDIS Mode Brightness Adjustment

For ECDIS-approved models, you can use the ECDIS button to select an ECDIS display mode (DAY, DUSK, or

NIGHT). The ECDIS mode setting overwrites the custom display settings you specified.

The ECDIS button and ECDIS-related functions are disabled on standard MPC-2000 series models.
