MPC-2000 Series Hardware BIOS Setup
5-4
Boot Configuration

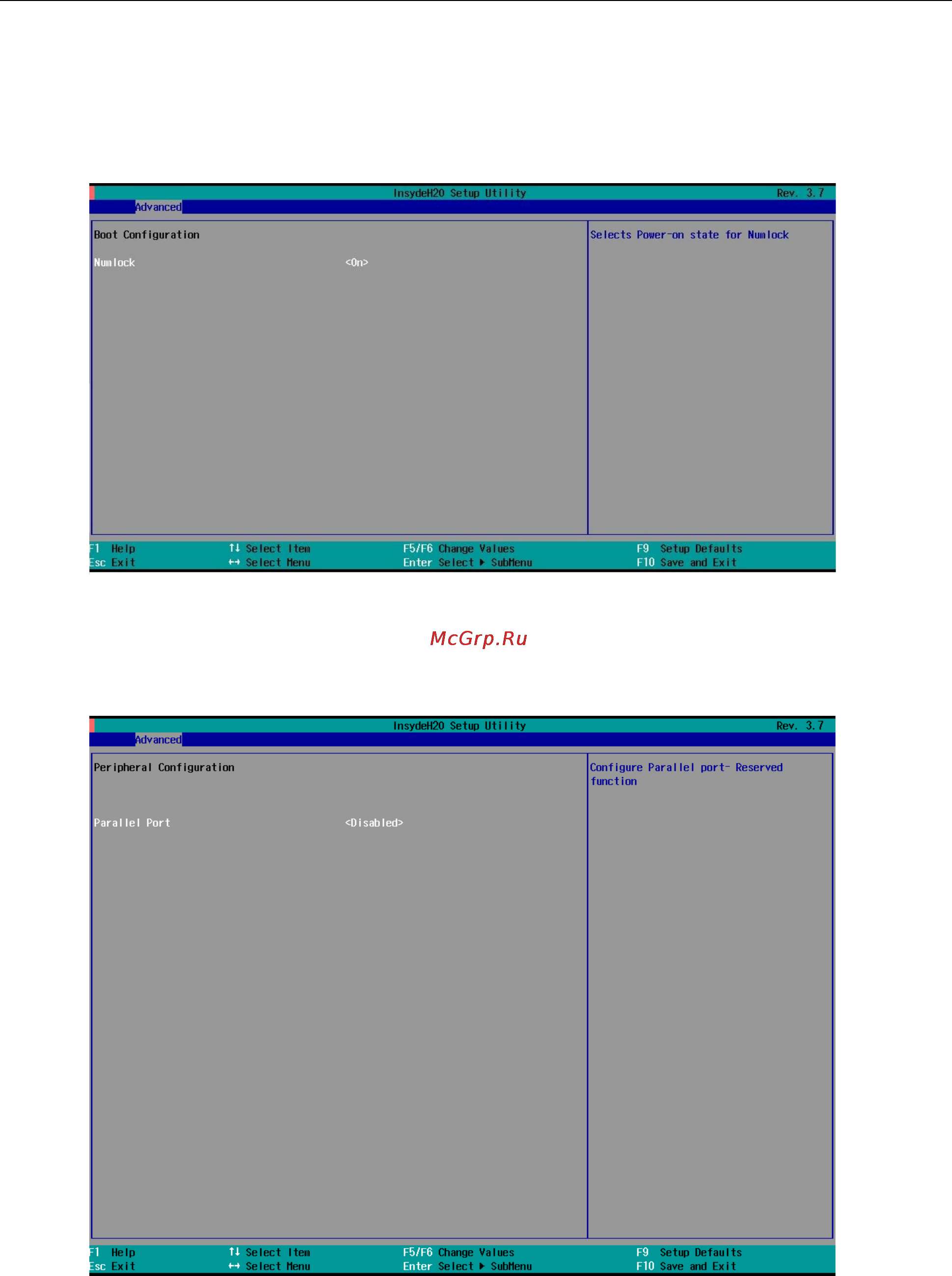

You can configure the numlock values in the Boot Configuration screen.
Option: On (default), Off.
Peripheral Configuration
Use this screen to configure the parallel port.
Parallel Port
This item allows you to configure the parallel port.
Options: Disabled (default), 378/IRQ7.
