MPC-2000 Series Hardware Hardware Installation and Connection
3-18

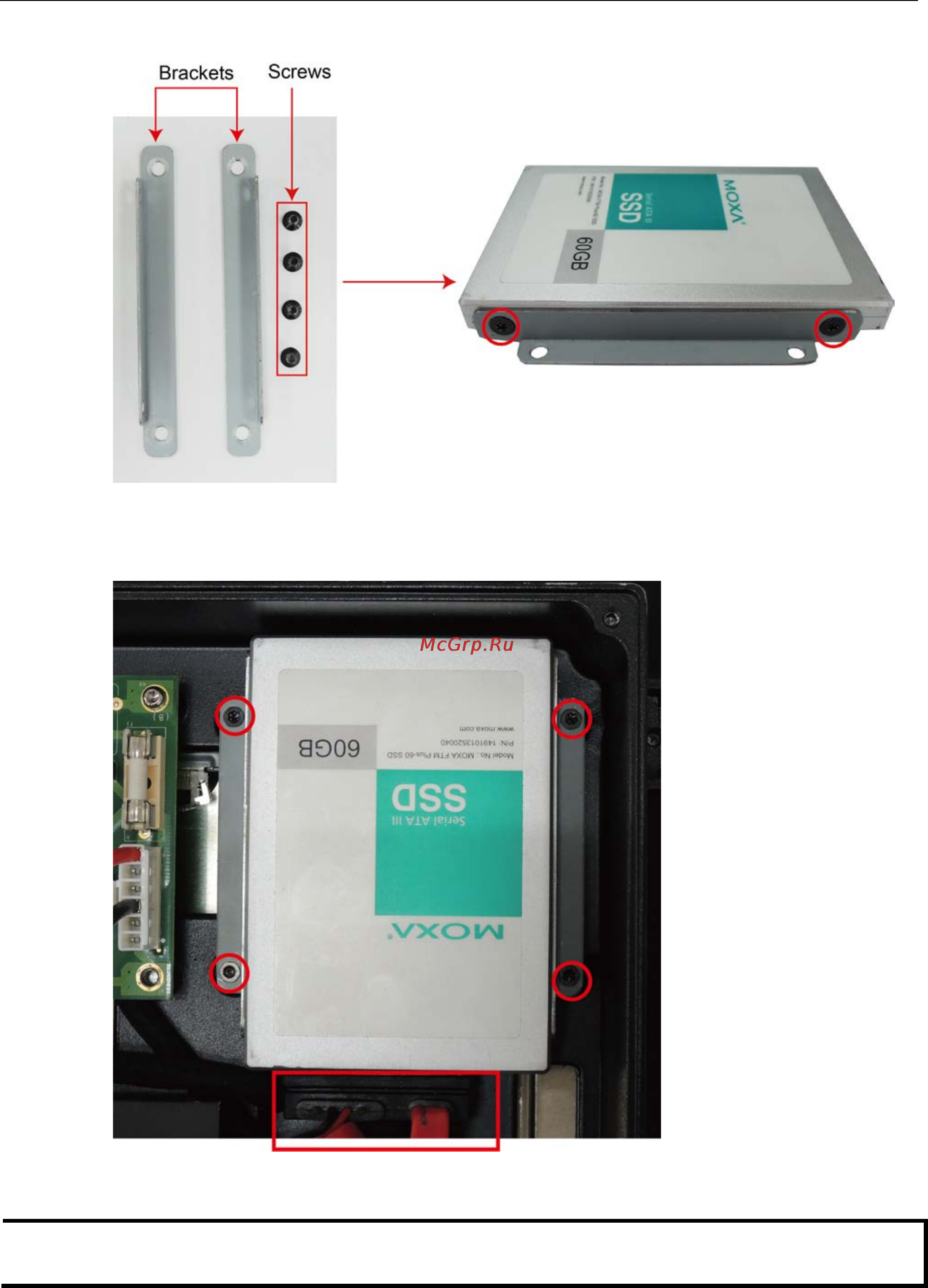

3. Use the screws to attach the brackets to the sides of the storage drive (HDD or SSD).
4. Align the screw holes on the brackets with the screw holes in the installation area; then, install the screws
to secure the storage drive in place as shown in the following figure.
5. Connect the SATA cable to the storage drive.
6. Re-install the cover of the MPC-2000 series and fasten the screws to secure the cover in place.
NOTE
To fasten
the screws on the cover of the MPC-2000 series, we recommend that you use a T10 Trox (Star)
screwdriver with
a torque of 4.5 kgf-cm.
