MPC-2000 Series Hardware BIOS Setup
5-6
SATA Port 0 to 1 - HotPlug
This item allows you to enable/disable hotplug capabilities (the ability to remove the drive while the computer
is running) for installed storage drives.
Options: Disable (default), Enabled.

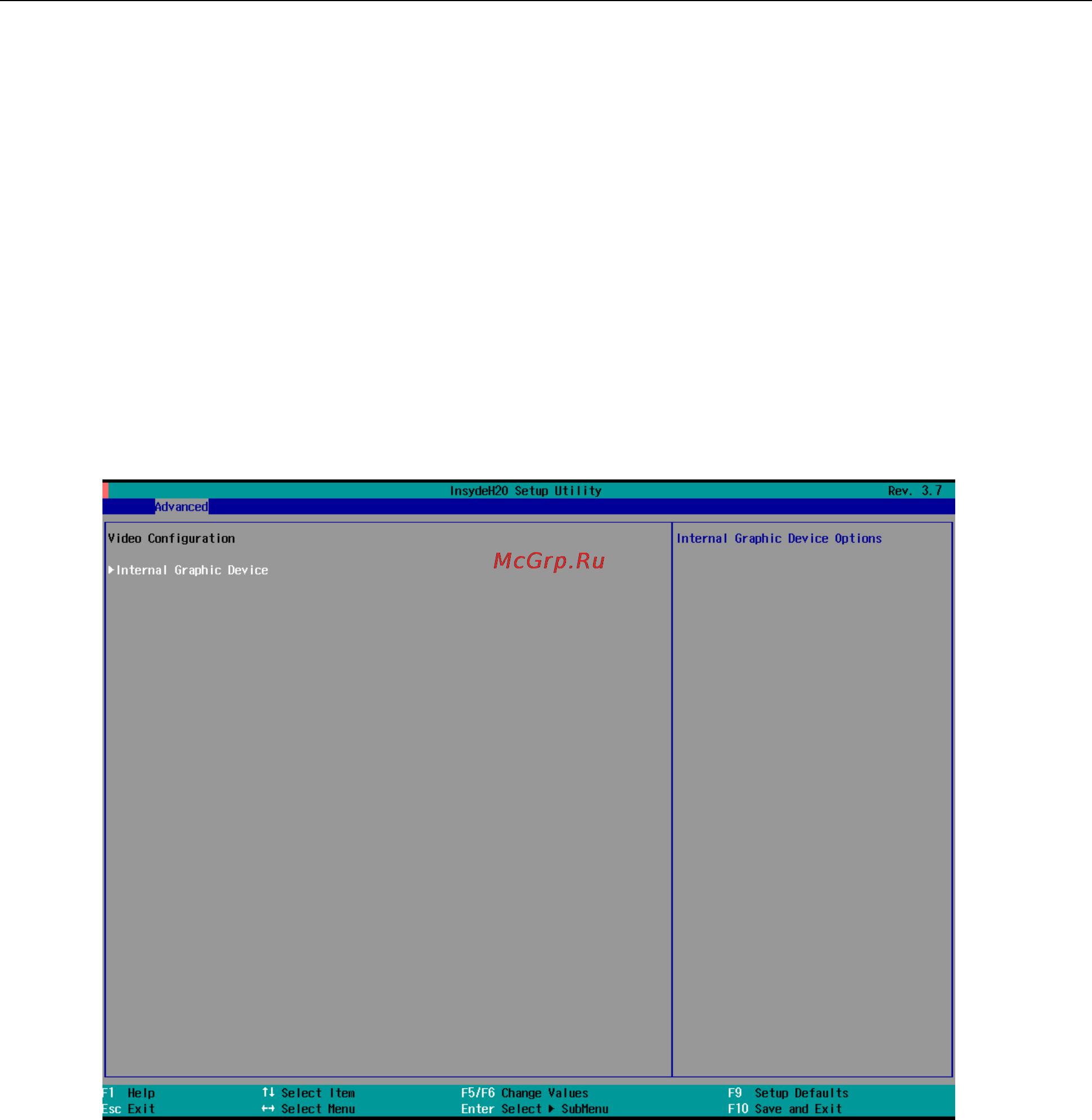

Video Configuration
This item allows you to configure the internal graphics device (IGD) for things like memory allocation (DVMT)
and monitor types (Boot Type).
Internal Graphics Device
