MPC-2000 Series Hardware BIOS Setup
5-13

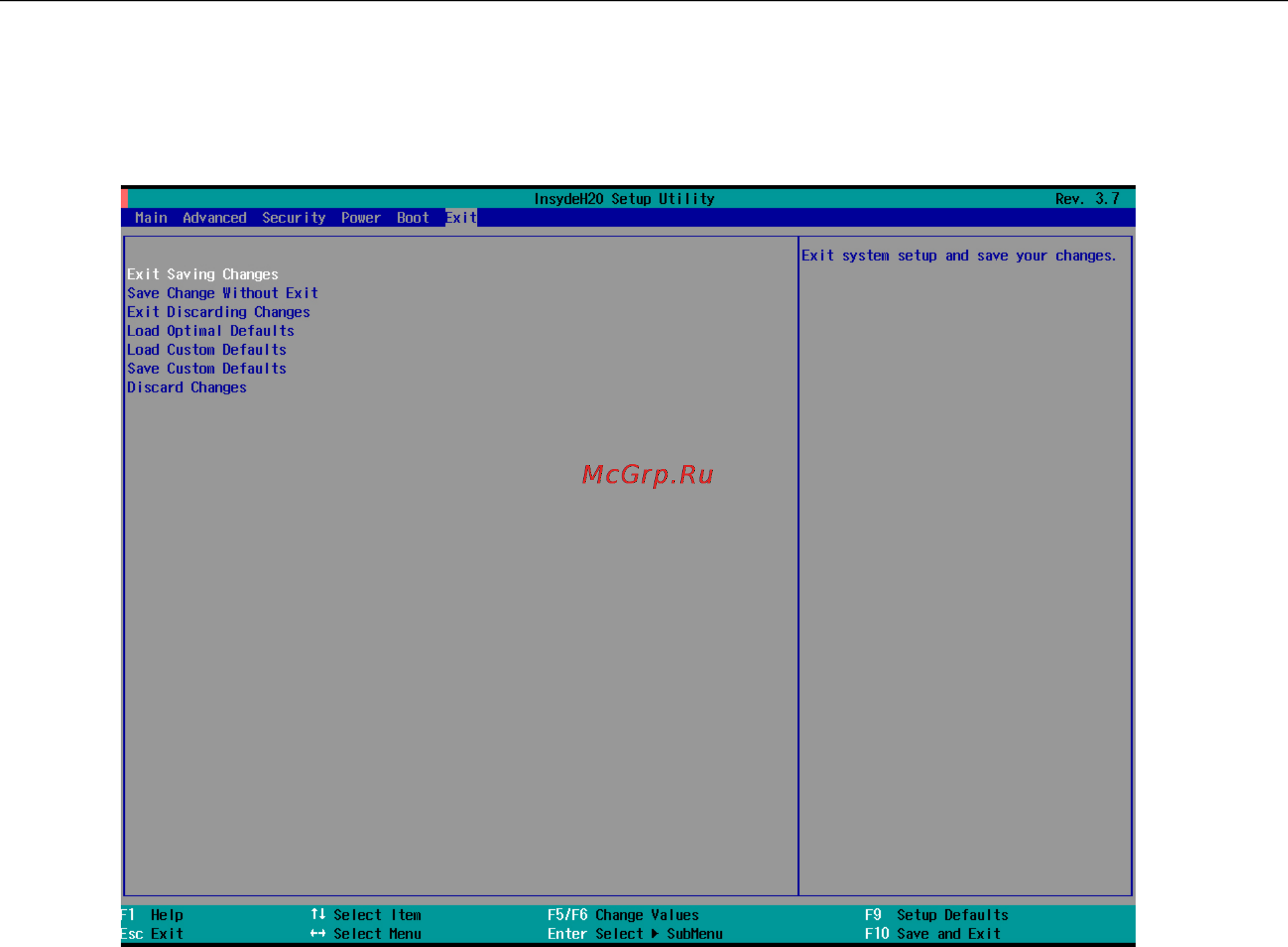

Exit Settings
The section allows users to exit the BIOS environment.
Exit Saving Changes
This item allows you to exit the BIOS environment and save the values you have just configured.
Options: Yes (default), No.
Save Change without Exit
This item allows you to save changes without exiting the BIOS environment.
Options: Yes (default), No.
Exit Discarding Changes
This item allows you to exit without saving any changes that might have been made to the BIOS.
Options: Yes (default), No.
Load Optimal Defaults
This item allows you to revert to the factory default BIOS values.
Options: Yes (default), No.
Load Custom Defaults
This item allows you to load custom default values for the BIOS settings.
Options: Yes (default), No.
