MPC-2000 Series Hardware BIOS Setup
5-11

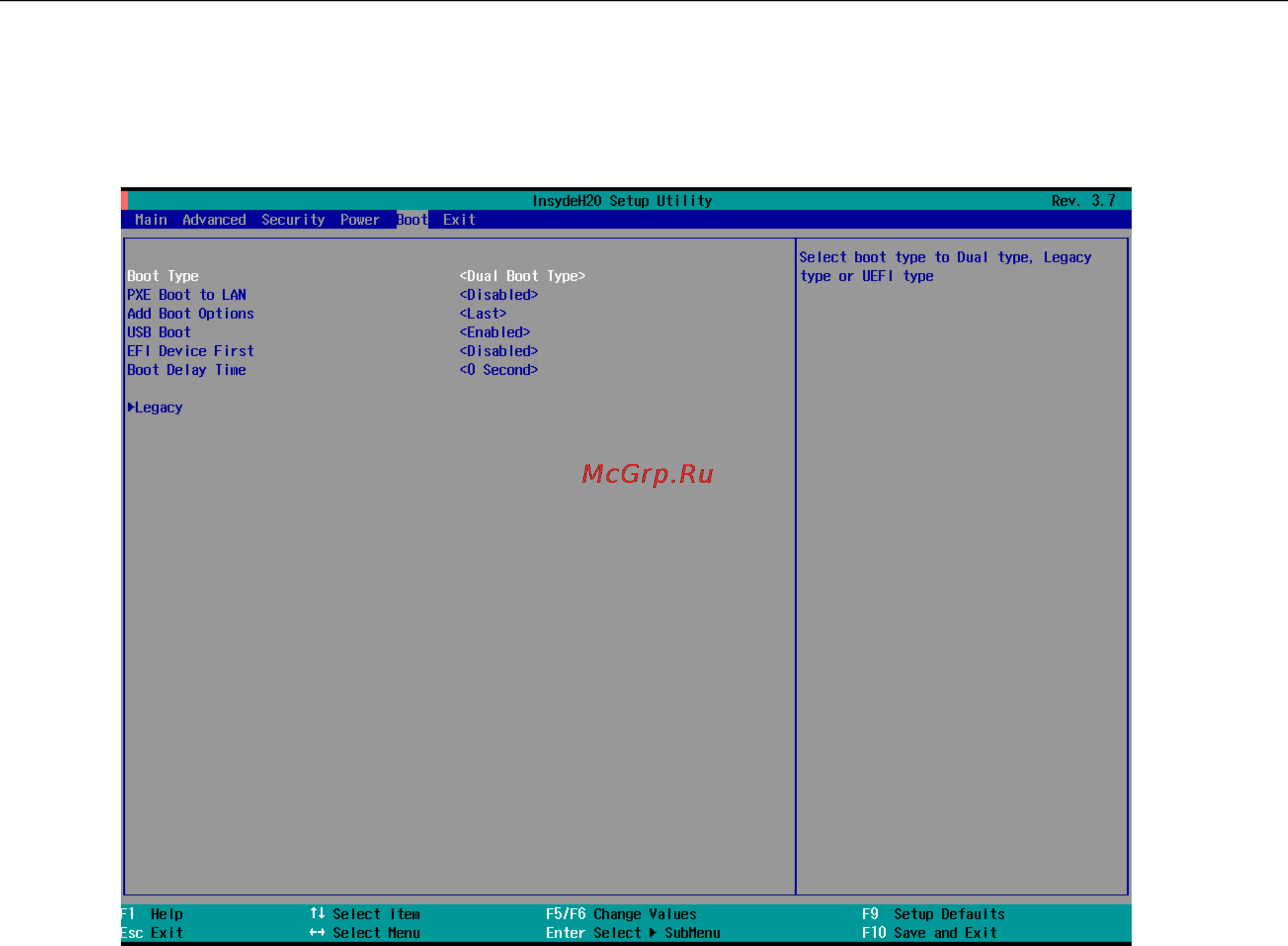

Boot Settings
This item allows you to select the BIOS support boot device type.
Boot Type
This item allows you to enable/disable quick boot function.
Options: Dual Boot Type (default), Legacy Boot Type, UEFI Boot Type.
PXE Boot to LAN
This item allows you to enable/disable PXE boot to LAN function.
Options: Disabled (default), Enabled.
Add Boot Options
This item allows you to add the boot order options for shell, network and Removables.
Options: Last (default), First.
USB Boot
This item allows you to enable/disable USB boot function..
Options: Enabled (default), Disabled.
