MPC-2000 Series Hardware BIOS Setup
5-2
Starting the BIOS Setup Utility

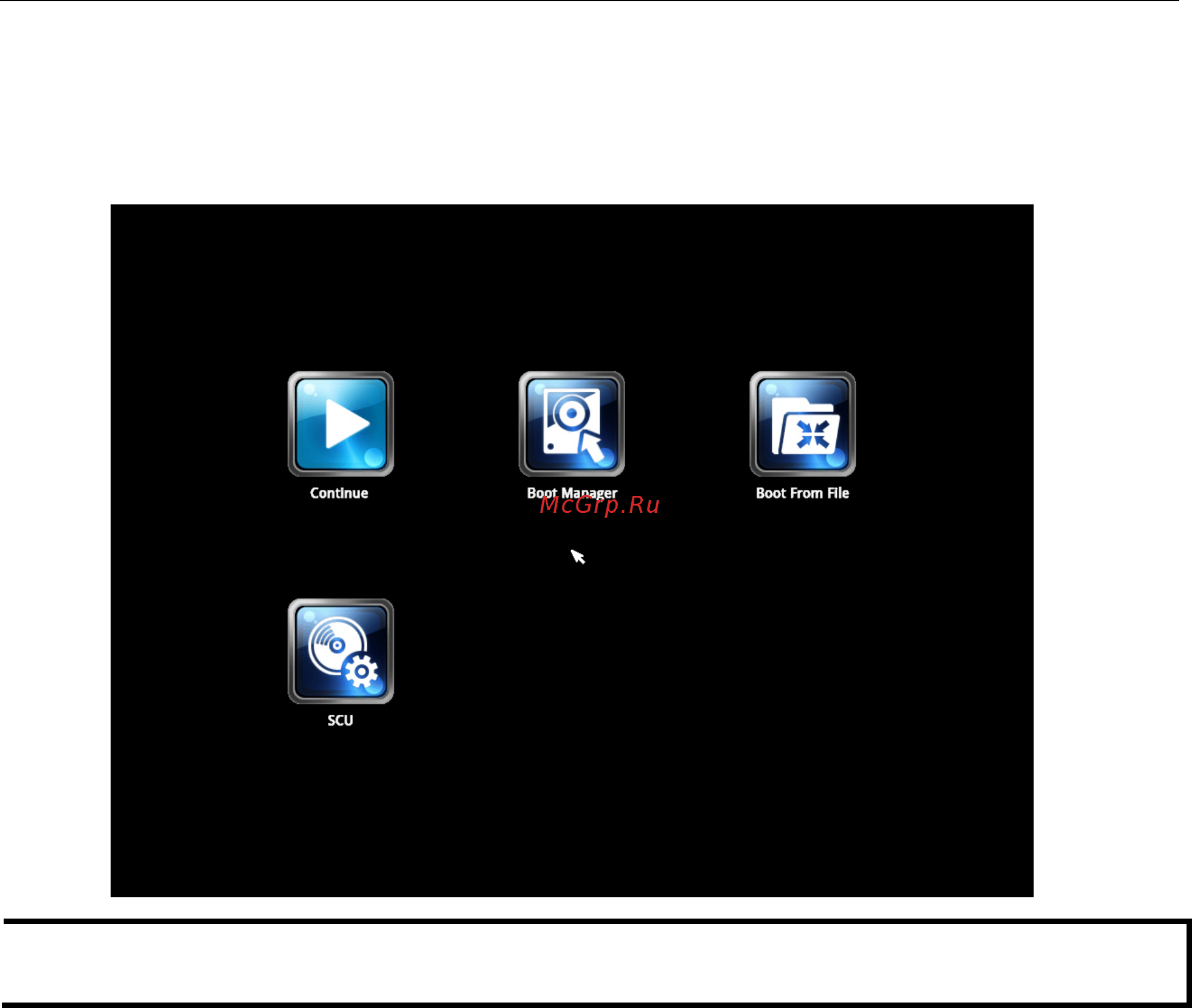

To start the BIOS setup utility, press the F2 key while the system is booting up. The main BIOS Setup screen
appears. Select SCU to access the BIOS Configuration screen.
NOTE
The
BIOS does not support the touch screen function. You must connect a keyboard to the MPC-2000 series
to
configure the
BIOS.
A short description of each function key is displayed at the bottom of the screen.
F1: General Help
F5/F6: Change Values
F9: Setup Defaults
F10: Save and Exit
↑↓
: Select Item
←
→
: Select Menu
ESC: Exit
ENTER: Select or go to Submenu.
