Panel Mounting

The

MPC-2000 series display comes with 14

optional clamp mounts that

enable you to

install

the unit onto a wall (where space has

been cut o

ut to accommodate the rest of the

hardware) or into computing stations where a

flush mount is needed.

The maximum thickness of the surface to

which the unit can be clamped is 11 mm.

For a secure mounting, use all 14 clamps (for

MPC

-2260 and MPC-2240 models) or 10

clamps (for

MPC-2190 models). The clamp

arms are fastened into slots on all four sides of

the

MPC-2000 series display.

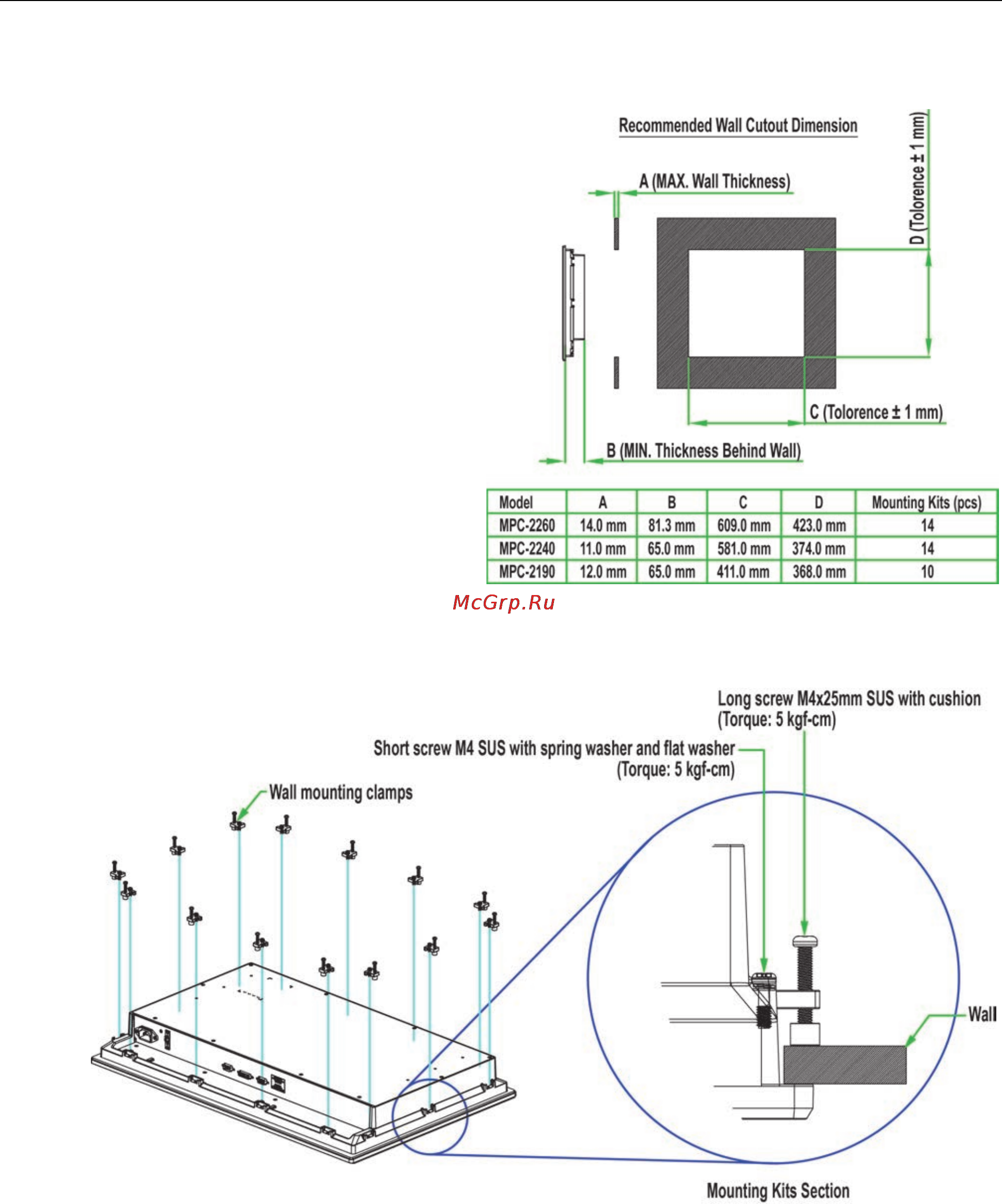

To fasten the clamp arms to the MPC-2240 mounting slots as shown in the following figure, use the short M4

SUS (stainless) screws. Then, use the clamps to fasten the display to its mounting point. Note the torque values

shown in the figure.

VESA Mounting

The MPC-2000 series also comes with an optional VESA mounting kit. Six flat-headed screws and four round

screws are required to fasten the VESA mounting bracket. See the following figure for detailed screw

specifications and torque values.

Four additional screws (not included in the kit) are required to mount the unit on a VESA rack. Use M6 screws

with a length between 10 and 12 mm.
