MPC-2000 Series Hardware Hardware Installation and Connection
3-15
Connecting a PS/2 Keyboard and Mouse

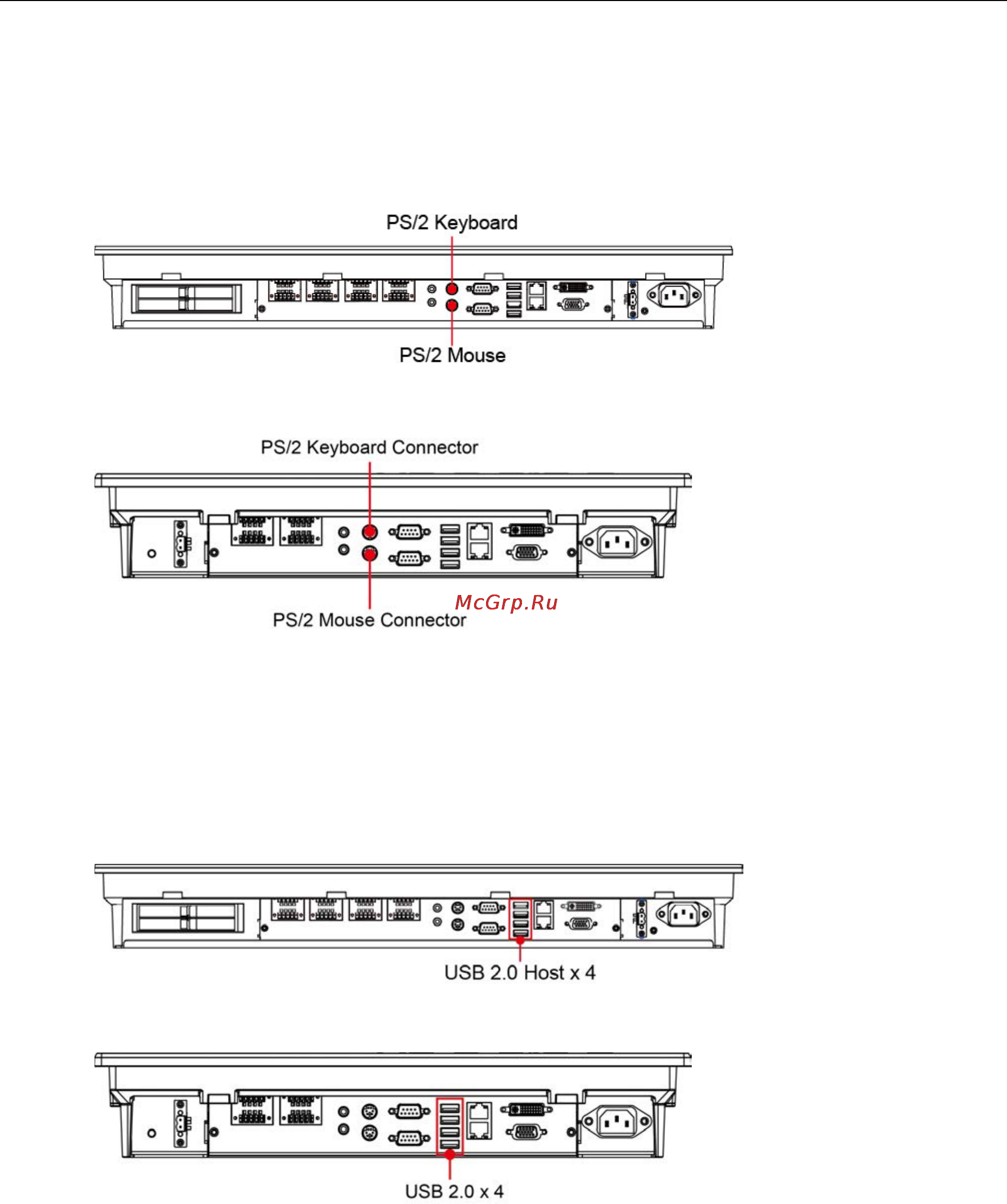

Your MCP-2240-MP computer comes with two PS/2 connectors to connect to a PS/2 keyboard (upper connector)
and PS/2 mouse (lower connector). See the following figure for the detailed location.
MPC-2240/MPC-2260
MPC-2190
Connecting to USB Devices
The MPC-2000 series comes with four USB 2.0 ports on the bottom panel. You can connect USB devices (such
as a mouse or keyboard) or an external storage drive to the USB ports.
MPC-2240/MPC-2260
MPC-2190
