14

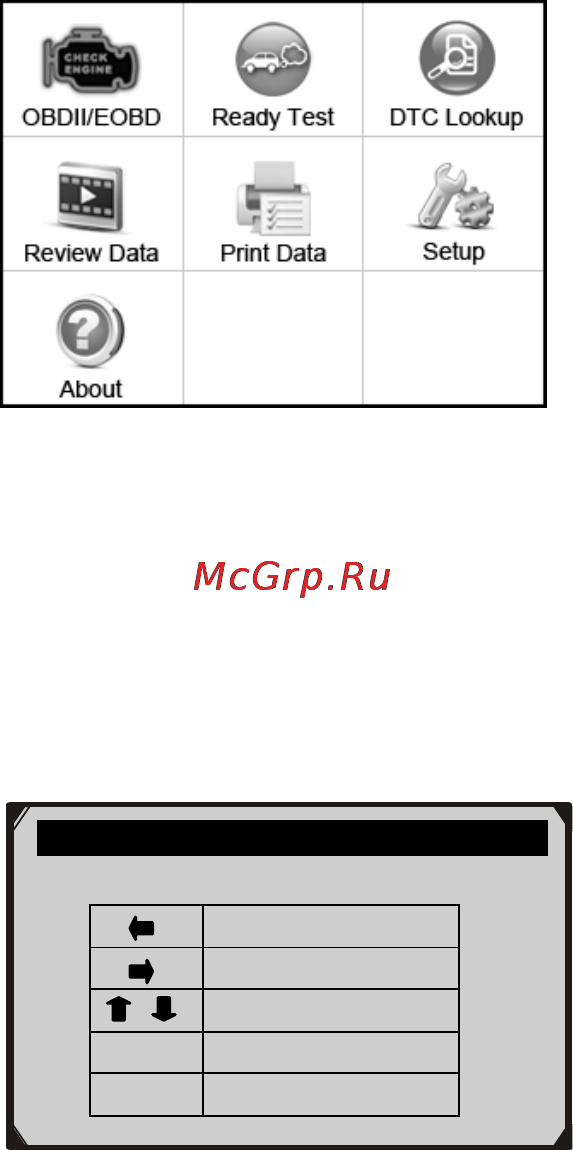

Figure 3.1
2) From DTC Lookup screen, use the LEFT/RIGHT button to
move to the desired character, use the UP/DOWN button to
change selected digit/character and press the OK button to
confirm. (Figure 3.2)
Figure 3.2
3) View the DTC definition on screen. When DTC definition covers
more than one screen, use the LEFT/RIGHT button or
UP/DOWN button to view additional information on
previous/next screens.
For manufacturer specific codes, you need to select a vehicle
make on an additional screen to look for DTC definitions.
If definition could not be found (SAE or Manufacturer
Specific), the scan tool displays “Please refer to vehicle
service manual!”
For code breaker information, you need to press the “?” Help
button.
DTC Lookup
P 0 0 0 1
Left
Right
Change digit
OK
Confirm
ESC
Exit
［ ］［ ］- Change Digit
［ENTER］- Confirm
［ESC］- Exit
