Autel Autolink AL519 [11/73] Using the scan tool

3. Using the Scan Tool

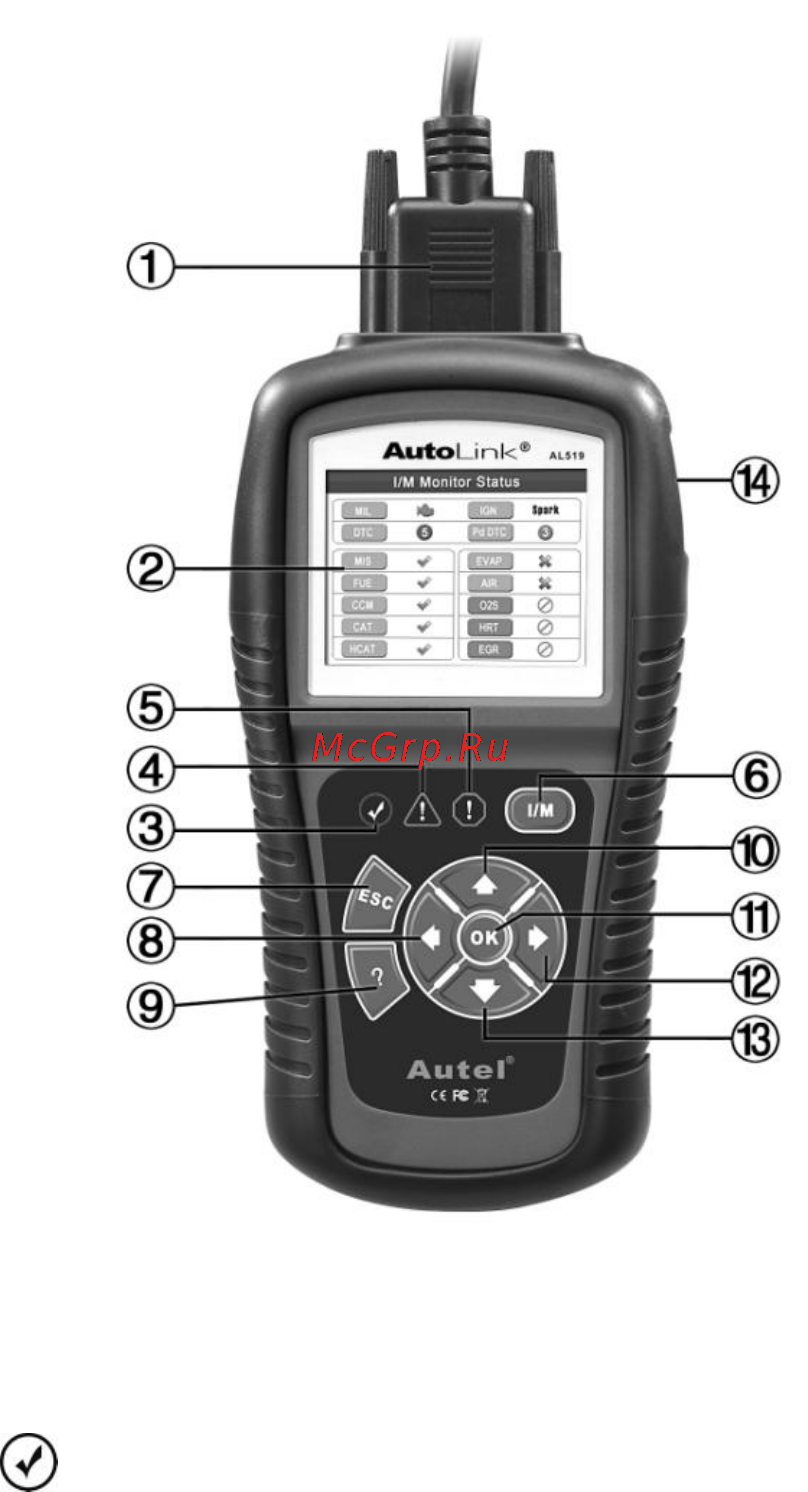

3.1 Tool Description

1) OBD II CONNECTOR – Connects the scan tool to the

vehicle‟s Data Link Connector (DLC).

2) LCD DISPLAY – Indicates test results.

3) GREEN LED – Indicates that engine systems are running

normally (The number of monitors on the vehicle which are

active and performing their diagnostic testing is in the allowed

limit, and no DTCs are present).
